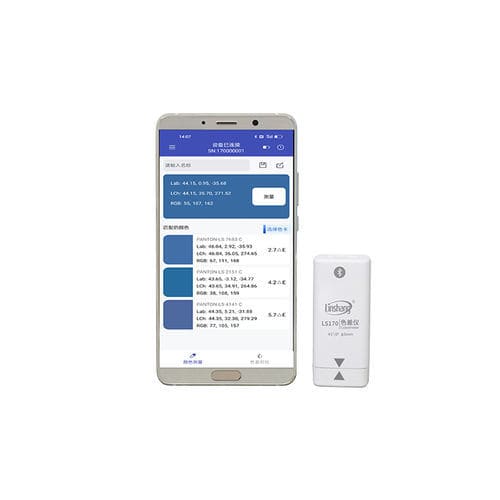

Portable colorimeter LS170

for color analysistransmission

Provide free color quality control app Provide color measurement and color comparison function Small size, easy to carry LS170 portable and smart colorimeter is designed to provide users color measurement and color comparison of materials for that color control is important. It provides Bluetooth transmission and can be used with a powerful app designed by Linshang. After connecting to the app via Bluetooth, the colorimeter can quickly measure the color and make color comparisons on mobile interface. Besides, It has some electronic color charts in it and can quickly match the color number. You can share the color value to your friends. This exquisite colorimeter is usually used in product color measurement and management, and product color difference quality control in paper printing. Illumination geometry - 45/0 (45°annular illumination, 0° viewing angle) Illumination light source - Full spectrum LED light source Measuring aperture - 8mm Measurement conditions - Light source D65, field of view 10° Measuring time - about 1s Color space - CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formula - ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability - Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Dimension - 31.7×31.7×70.4mm (L*W*H) Weight - about 51g Power supply - Rechargeable lithium battery 3.7V@700mAh,can continuously measure 10,000 times under full power Data transmission - Bluetooth Charging port - USB (Type-C) Operating temperature - 0~45℃, 0~85%RH (no condensation) Storing temperature - -25~55℃, 0~85%RH (no condensation)
