Non-destructive for metal, glass, ceramics and plastics
Precision ultrasonic thickness gauge provide fast, accurate readings
Two measurement modes: QC Mode/Statistics Mode
High-sensitive dual-crystal probe
Automatic Gain switchable
The tester employs a double crystal transducer consisted of two independent crystals separated by an acoustic barrier. When the ultrasonic pulse emitted by one of the crystal sensors of the probe reaches the demarcation surface through the material to be measured, the pulse will be reflected, and received by another crystal sensor. The professional timing chip inside the instrument precisely records the time of ultrasonic wave propagation in the material, and finally the instrument determines the thickness of the material with time and velocity. The measuring range of the tester is 0.8mm-350mm, capable of testing the most engineering materials, including metals, plastics, ceramics, glass, glass fiber and any other ultrasonic good conductor.

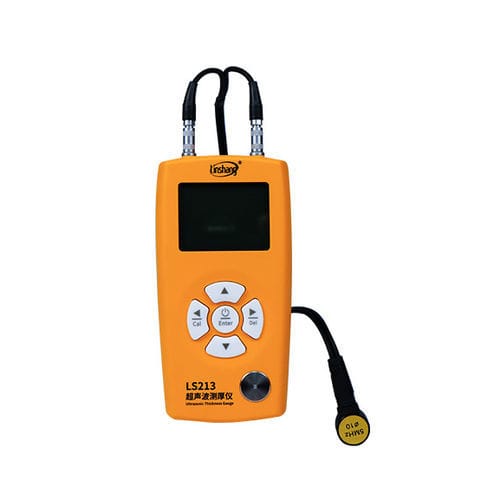

In many industries, It is essential to measure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety. LS213 ultrasonic thickness gauge can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure. The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields.
Sound Velocity Range - 1000~9999m/s
Probe Specification - 5MHz φ10 dual-crystal probe
Display - 240 * 160 dot matrix LCD
Unit - mm/inch
Power Supply - 2 * AA alkaline dry batteries
Host Size - 142 * 72 * 28 mm
