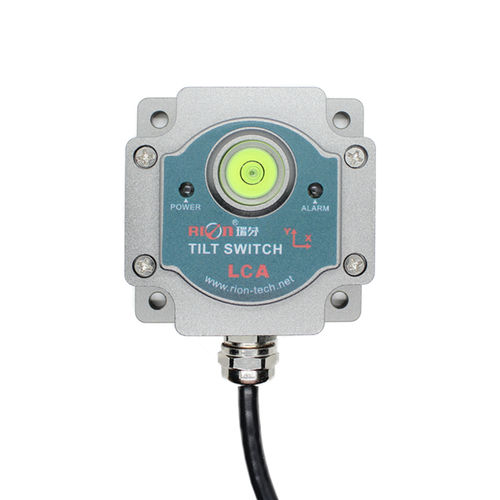

MEMS tilt switch LCA332B

2-axis1-axistemperature compensated

LCA331A series a low cost tilt switch developed by RION for application like level safety alarming and platform level monitor and alarm. Alarm threshold value is pre-setable. when the inclination exceed set alarm value, it will output switch output signal(output voltage=input voltage), or output replay output signal to drive the solenoid valve hydraulic system or drive buzzer or alerming light for the safety of platform. Its main function is to monitor and alarm the(dual axis or single axis) inclination of platform automatically. LCA331A series tilt switch has high accuracy bubble for zero reference, LED alarming function.

▶Feature
●Single/dual axis
●accuracy: refer to parameter
●RS232 set alarm angle
●Switch/replay output
●wide working temp.:-40+85℃
●resolution: 0.05°
●IP67
●high anti-vibration>2000g
●direct lead cable
●Adjustable alarm value
●zero set function
● positive/negative output
●DC 936v input

▶ APPLICATION
Engineering vehicles automatic leveling
Bridge & dam detection
Aerial platform vehicle,lifter safety & protection
Medical facilities angle control
Underground drill posture navigation
Shield pipe jacking application
The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine
