- Detection - Measurement
- Flow, Pressure and Level Measurements
- Barometric pressure sensor
- SHENZHEN RION TECHNOLOGY CO.,LTD

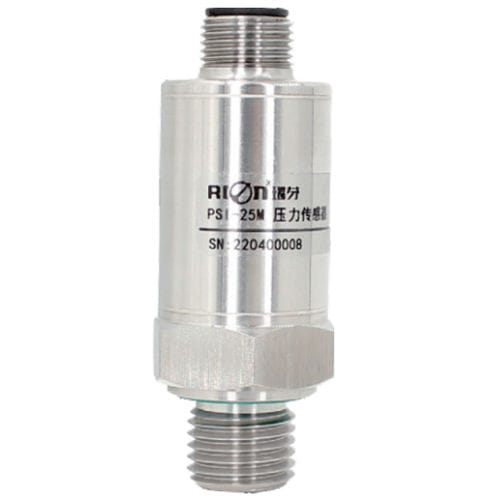

Barometric pressure sensor PSI-25Msensitive elementMEMS4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- barometric
- Technology
- sensitive element, MEMS
- Output
- 4-20 mA
- Electrical connection
- M12 connector
- Supply voltage
- 24VDC
- Mounting
- wall-mounted
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- rugged, IP67
- Applications
- for OEM, for medical applications, for engines, for agricultural applications, for the oil and gas industry
- Other characteristics
- compact, precision, OEM, CE, temperature-compensated, miniature
- Pressure range
Max.: 250 bar
(3,625.94 psi)Min.: 0 bar
(0 psi)- Precision
0.5 %, 1 %, 2 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Product introduction:
PSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment,shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding, strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision,one way output 20mA to 4mA, the other output 4mA to20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low temperature drift and higher accuracy, good electromagnetic compatibility and environmental adaptability.It suits for various complex and harsh industrial working condition.PSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment,shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding, strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision,one way output 20mA to 4mA, the other output 4mA to20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low temperature drift and higher accuracy, good electromagnetic compatibility and environmental adaptability.It suits for various complex and harsh industrial working condition.
Wiring Definition:
FAQ – PSI-25M Pressure Sensor
1. What is the PSI-25M pressure sensor used for?
The PSI-25M is designed for pressure measurement of liquids and gases in construction machinery, industrial equipment, shipbuilding, and other industrial applications requiring reliable pressure monitoring.
2. What is the measuring range of the PSI-25M?
The PSI-25M provides a 0–25 MPa measuring range, making it suitable for high-pressure measurement applications.
3. What type of output does the PSI-25M support?
The PSI-25M supports two current output directions: 4–20 mA and 20–4 mA, providing flexible signal compatibility with different industrial control and monitoring systems.
PSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment,shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding, strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision,one way output 20mA to 4mA, the other output 4mA to20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low temperature drift and higher accuracy, good electromagnetic compatibility and environmental adaptability.It suits for various complex and harsh industrial working condition.PSI-25M is used for the pressure measurement of liquid and gas in construction machinery, industrial equipment,shipbuilding industry, and other industries requested for pressure monitor or measurement. Features: measuring range 0-25MPa, 304 stainless steel shell integrated by laser welding, strong corrosion resistance, high pressure measure range, aviation connector, IP67, two current output ways, long transmission distance, high precision,one way output 20mA to 4mA, the other output 4mA to20mA, dual reverse output, strong anti-interference ability, with temperature compensation algorithm, low temperature drift and higher accuracy, good electromagnetic compatibility and environmental adaptability.It suits for various complex and harsh industrial working condition.
Wiring Definition:
- PIN1 DC9~32VV+(shared)
- PIN2 lout(20~4mA)
- PIN3 GND(shared)
- PIN4 lout(4~20mA)
FAQ – PSI-25M Pressure Sensor
1. What is the PSI-25M pressure sensor used for?
The PSI-25M is designed for pressure measurement of liquids and gases in construction machinery, industrial equipment, shipbuilding, and other industrial applications requiring reliable pressure monitoring.
2. What is the measuring range of the PSI-25M?
The PSI-25M provides a 0–25 MPa measuring range, making it suitable for high-pressure measurement applications.
3. What type of output does the PSI-25M support?
The PSI-25M supports two current output directions: 4–20 mA and 20–4 mA, providing flexible signal compatibility with different industrial control and monitoring systems.
