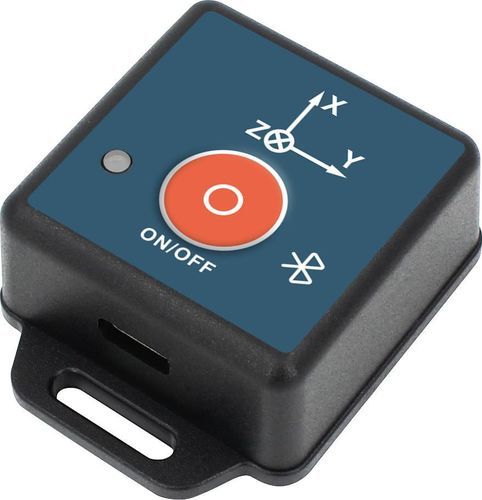

Inertial measurement unit IMU100-BL

Product Description
IMU100-BL is a wearable, cost-effective AHRS designed for high-dynamic applications including medical rehabilitation devices, motion capture, robotics, drones, agricultural and engineering vehicles. The unit fuses nine-axis sensor data with temperature compensation and a Kalman filter to deliver real-time attitude (azimuth, roll, pitch) and raw 9-axis outputs. Configuration and data output are available via USB2.0 and Bluetooth 5.1 (BLE). On-chip flash IAP preserves user parameters after power loss. The Bluetooth module supports firmware upgrades, multi-device synchronization and up to 40 m line-of-sight transmission in unobstructed environments.

Key Features

• Integrated 9-axis sensor and temperature sensor
• Bluetooth 5.1 (BLE) wireless transmission
• Kalman attitude filtering algorithm
• DC 3.0–4.2 V supply; typical consumption 50 mA
• Real-time 3D dynamic measurement and attitude output
• Outputs: attitude, 3-axis acceleration, 3-axis gyroscope, 3-axis magnetometer
• On-chip flash IAP to retain parameters after power loss
• USB2.0 and Bluetooth interfaces; firmware upgrade and multi-device synchronization

Scope of application

• Medical rehabilitation equipment monitoring
• Human motion capture and analysis
• Limb rehabilitation monitoring
• Robotics and automated systems

Parameters
IMU100-BL parameters
Azimuth — Measuring range: ±180° (optional gyro/magnetic azimuth); Measurement accuracy (RMS) @25°C: < 1.5° (without magnetic interference); Resolution: <0.1°
Inclination — Measuring range: Roll ±180°, Pitch ±90°; Measurement accuracy (RMS) @25°C: < ±0.5° (dynamic), < ±0.2° (static); Resolution: <0.1°
Gyroscope — Measuring range: ±500°/sec; Zero deviation stability @25°C: <200°/hr; Resolution: <0.1°/sec; Bandwidth: >100Hz
Accelerometer — Measuring range: ±8G; Resolution: <10mg; Bandwidth: >100Hz
Magnetometer — Measuring range: ±8 gauss; Resolution: <2.5 mgauss; Bandwidth: 14–17Hz
Electrical connection — Supply voltage: DC 3.0–4.2V; Power consumption: 50mA (typical); Output interface: USB2.0; Operating temperature: -5℃ ~ 55℃; Storage temperature: -10℃ ~ +55℃; MTBF: ≥ 98,000 hours; Impact resistance: 100g @ 11ms, triaxial (half sine); Vibration resistance: 10grms, 10–1000Hz; Ingress protection: IP65; Connector: Type-C; Weight: ≤ 35g (excluding cable)

Technical specifications

• Model: IMU100-BL
• Sensor: Integrated 9-axis (3-axis gyro + 3-axis accel + 3-axis magnetometer) + temperature sensor
• Attitude algorithm: Kalman filtering
• Azimuth range: ±180° (gyro/magnetic option)
• Azimuth accuracy (RMS) @25°C: <1.5° (without magnetic interference)
• Azimuth resolution: <0.1°
• Roll/Pitch range: Roll ±180°, Pitch ±90°
• Inclination accuracy: <±0.5° dynamic, <±0.2° static
• Gyro range: ±500°/s; zero drift <200°/hr; resolution <0.1°/s; bandwidth >100Hz
• Accelerometer: ±8G; resolution <10mg; bandwidth >100Hz
• Magnetometer: ±8 gauss; resolution <2.5 mgauss; bandwidth 14–17Hz
• Supply voltage: DC 3.0–4.2V
• Power consumption: 50mA (typical)
• Interfaces: USB2.0 and Bluetooth 5.1 (BLE)
• Communication range: up to 40 m line-of-sight (typical, unobstructed)
• Operating temperature: -5℃ to 55℃; Storage: -10℃ to +55℃
• MTBF: ≥98,000 hours
• Shock: 100g @11ms (triaxial)
• Vibration: 10grms, 10–1000Hz
• Ingress protection: IP65
• Connector: Type-C
• Weight: ≤35 g (excluding cable)
