9-axis attitude and heading reference system HCM600B

miniaturelightweightunderwater

Product description

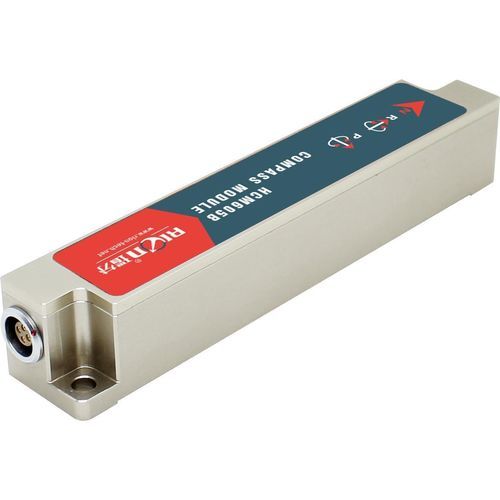

HCM600B/HCM605B is a dynamic 3‑axis electronic compass integrating a 3‑axis accelerometer, 3‑axis gyroscope and 3‑axis magnetometer. Roll, pitch and heading are computed in real time by a 32‑bit high‑speed processor. Available modes: pure compass, 9‑axis fusion and 9‑axis fusion anti‑jamming. Hard‑iron and soft‑iron calibration algorithms and inertial compensation maintain accurate heading even at large tilt angles (roll ±180°, pitch ±85°). The sensor is a slim strip (L111.5 × W19.5 × H19.5 mm) with low power consumption and can be supplied as a module or as a housed unit (up to IP67). It is intended for industrial attitude and heading measurement in applications such as antenna stabilization, vehicles and unmanned platforms.

Scope of application

• Engineering and construction vehicle leveling
• High‑altitude platform safety protection
• Shield/tube jacking and tunnelling applications
• Medical device angle control
• Underground drilling rig attitude navigation
• Orientation measurement based on inclination
• Geological equipment tilt monitoring
• Mining machinery and oil drilling equipment
• Equipment level control
• Alignment control and bending control

Parameters
Models: HCM600B / HCM605B.
Heading: accuracy 0.5° (tilt <10°); resolution 0.1°.
Tilt parameters:
- Pitch accuracy: 0.1° (<15°), 0.1° (<30°), 0.1° (<60°), 0.2° (<85°).
- Pitch range: ±85°.
- Roll accuracy: 0.1° (<15°), 0.1° (<30°), 0.1° (<60°), 0.2° (<180°).
- Roll range: ±180°.
Resolution: 0.1°.
Calibration: hard iron and soft iron calibration supported; magnetic interference calibration by 360° horizontal rotation (vertical rotation optional).

Characteristics / Technical specifications

• Model: HCM600B / HCM605B
• Measurement ranges: Roll ±180°, Pitch ±85°, Azimuth 0–360°
• Azimuth accuracy: 0.3–0.5° (typical)
• Resolution: 0.1°
• Working modes: Pure compass / 9‑axis fusion / 9‑axis fusion anti‑jamming
• Calibration: Hard iron & soft iron calibration; magnetic interference calibration by rotation
• Interfaces: RS232, RS485, TTL (5‑pin quick plug)
• Output rate: up to 20 Hz
• Communication speed: 2400–115200 baud (default 9600)
• Power supply: DC 5 V (default); current max 30 mA; idle 26 mA
• Protection rating: IP67 (with housing option)
• Operating temperature: -40℃ to +85℃
• Dimensions: L111.5 × W19.5 × H19.5 mm
• Weight: ≤85 g (excluding cable)
• MTBF: ≥98,000 hours
