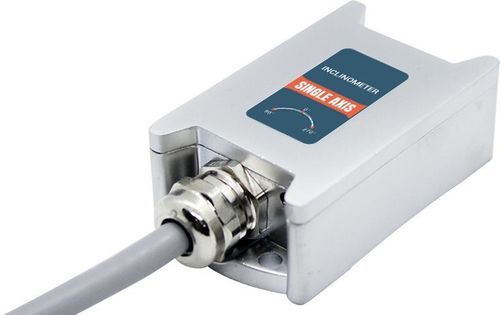

Single-axis inclinometer WCA360M

RS-485Modbuscapacitive

Product description
The WCA360M single-axis inclinometer is a compact, low-cost industrial tilt sensor designed for long-term, stable field operation. It uses a capacitive MEMS sensing unit and an anti-interference platform design to provide reliable tilt measurements across a wide temperature range. The device measures tilt without mechanical contact and is fixed directly to the measured object, eliminating the need for a rotating shaft.

Key features

• Resolution: 0.1°
• Range: single-axis 0–360°
• Output: RS485 (MODBUS protocol)
• Operating voltage: DC 9–36 V
• Operating temperature: -40 to +85 °C
• High vibration resistance
• Non-contact measurement principle (capacitive MEMS unit)
• Long-term stable operation; effective working life up to 10 years

Scope of application

• Solar PV tracking control
• Bridge monitoring
• Track monitoring

Parameters

• Model: WCA360M
• Measurement axis: Single-axis
• Range: 0–360°
• Resolution: 0.1°
• Measurement accuracy: ±0.2° at 25 °C
• Temperature drift: ±0.003 °/°C over -40 to +85 °C
• Response time: 0.1 s (no filtering)
• Operating temperature: -40 to +85 °C
• Output interface: RS485 (MODBUS protocol)
• Output load: >500 Ω
• Working life: 50,000 hours (no malfunction)
• Insulation resistance: >100 MΩ
• Vibration resistance: 10 grms, 10–1000 Hz
• Impact resistance: 100 g @ 11 ms, three-axis (half-sine wave)
• Weight: ≤200 g (including 1 m cable)
• Installation: Fixed to measured object; non-contact measurement, no rotating shaft required

Technical specifications

• Model: WCA360M
• Axis: Single-axis
• Range: 0–360°
• Resolution: 0.1°
• Accuracy: ±0.2° (25 °C)
• Temp. drift: ±0.003 °/°C
• Operating temp.: -40 to +85 °C
• Response time: 0.1 s
• Interface: RS485 (MODBUS)
• Load: >500 Ω
• Lifetime: 50,000 h
• Insulation: >100 MΩ
• Vibration: 10 grms, 10–1000 Hz
• Impact: 100 g @ 11 ms (3-axis)
• Weight: ≤200 g (incl. cable)
