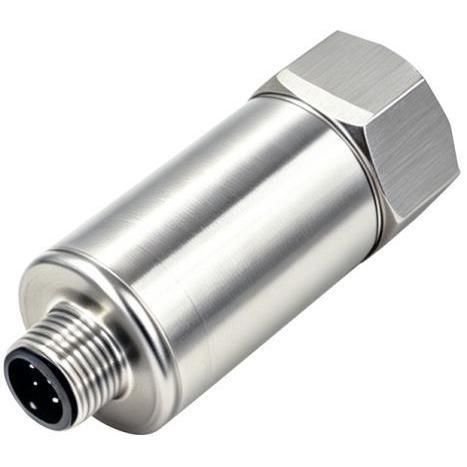

MEMS vibration sensor GHA360

for machine monitoringfor machine condition monitoringmotor

Product Introduction
The GHA360 is a three-axis Ethernet high-frequency vibration sensor with synchronized transient acceleration acquisition on X/Y/Z axes. It delivers a maximum single-axis response up to DC–10 kHz and covers typical fault frequency bands of rotating industrial machinery (gear mesh, bearing characteristic frequencies, blade pass frequency). The sensor integrates a 20-bit high-resolution ADC with sensitivity down to 0.095 mg/LSB and low-noise performance (35µg/√Hz), ensuring accurate time-domain waveform capture even in high background noise. Standard 10/100 Mbps Ethernet enables direct raw waveform packet push to upper-level servers without intermediate gateways, supporting low-latency end-to-end transmission. The decentralized design fits online condition monitoring and lifecycle health quantification of motors, pumps, fans, reducers and gearboxes for predictive maintenance.

Key Features

• Measuring range ±50g
• Sensitivity 0.095 mg/LSB
• Bandwidth / Response frequency DC–10 kHz
• Low noise 35µg/√Hz
• Sampling frequency 80 kHz
• Three-axis (X / Y / Z) transient acquisition
• Communication interface: Ethernet (10/100 Mbps), direct raw waveform packet push
• Power supply: 12V
• Protection rating: IP67
• Operating temperature (summary): -10 ℃ to +70 ℃

Performance Parameters

• Model: GHA360
• Measurement Range: ±50g
• Sensitivity: 0.095 mg/LSB
• Measuring Axis: X / Y / Z
• Response Frequency / Bandwidth: DC~10 kHz
• Sampling Frequency: 80 kHz
• Transient Data: X, Y, Z transient waveforms
• Communication Interface: Ethernet (10/100 Mbps)
• Device Address: factory default is '1'
• Operating Ambient Temperature: -40℃ ~ +85℃
• Installation Method: Magnetic or double-ended screw mounting (bottom hole M5*6)
• Protection Rating: IP67
• Dimensions: Ø23.6×H60.6mm
• Product Weight: ≤105g

Product Dimensions
Ø23.6×H60.6mm (refer to product drawing for dimensional details)

Technical specifications

• Measurement Range: ±50g
• Sensitivity: 0.095 mg/LSB
• Axis: X / Y / Z (three-axis transient acquisition)
• Response Frequency / Bandwidth: DC ~ 10 kHz
• Sampling Frequency: 80 kHz
• Noise: 35µg/√Hz (low noise)
• Communication: Ethernet (10/100 Mbps), supports direct raw waveform packet push
• Power Supply: 12V
• Protection Rating: IP67
• Operating Ambient Temperature: -40℃ ~ +85℃ (table) and -10 ℃ to +70 ℃ (summary)
• Installation: Magnetic or double-ended screw mounting (bottom hole M5*6)
• Dimensions: Ø23.6×H60.6mm
• Product Weight: ≤105g
