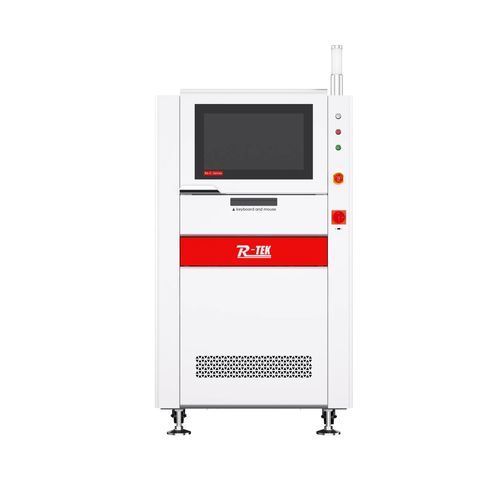

CO2 laser marking machine R6-C

ceramicfor metalplastics

CO2 laser：wavelength 10600nm ● 1.2mm minimum size of the barcode ● Self-developed marking software ● Marking and reading simultaneously ● Lens height focus auto-adjustment Automatic laser marking machine is a professional equipment marking one-dimensional code, two- dimensional code, text, symbol or graphics on PCB surface. It is composed of laser marking system, XY precision movement platform, MARK+CCD precise positioning system, transmission track automatic adjustment system and online reading system. * Fully automatic control, PC+QC software control, Windows 10 operating system. * Optional CO2/FB/UV/GR laser marking system, with XY precise platform, CCD+MARK precise positioning. Accuracy of marking position within 0.02mm. (here use CO2) * Can print Chinese characters, English, numbers, charts, serial numbers, LOGO, barcodes, two-dimensional code and so on. * Can access shopfloor\MES system. * Support Gerber,DXF and other documents import. * Support marking various types of PCB, FPC, non-metal and other different material surface. * with high quality, high yield, high stability, no production supplies, etc.
