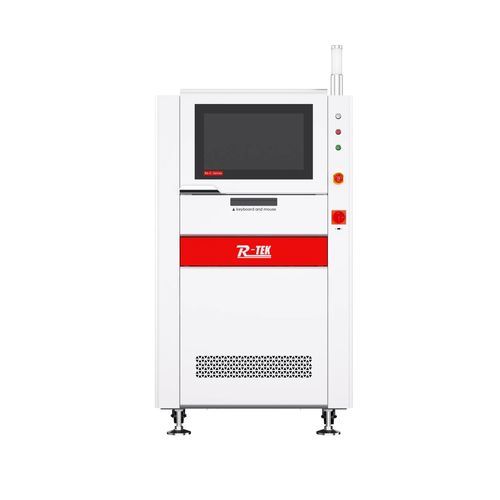

Fiber laser engraving machine R6-FF

for PCBbarcodemobile

Fiber laser：wavelength 1064nm ● 1.2mm minimum size of the barcode ● Self-developed marking software ● Marking and reading simultaneously ● Lens height focus auto-adjustment * Fully automatic control, PC+QC software control, Windows 10 operating system. * Optional CO2/FAYB/UV laser marking system, with XY precise positioning, CCD+MARK precise positioning. The accuracy of marking position is less than 0.02mm. (here use Fiber) * Can print Chinese characters, English, numbers, charts, serial numbers, LGOG, bar codes, two- dimensional code and so on. * Can access shopfloor\EMS system. * Support Geber,DXF and other documents import. * Support printing various types of PCB, FPC, non-metal and other different material surface. * with high quality, high yield, high stability, no production supplies, etc. — Hollow rotating mechanism Hollow rotating mechanism is adopted to ensure the rotating horizontal accuracy reach to 0.02mm, so as to prevent rotating not in place or unhorizontal status occurred — Characteristics of software operation * Visual operation of the edit template is displayed on the PCB board in real time, so editors can adjust the size, text position, text spacing, etc. via viewing marking area. User friendly operation. Quick operation to adapt to various bar code rules, and around 3minutes needed to edit a template. * CCD visual operation be used for all editing action, simple and convenient. * It’s equipped with function of anti-remarking data to avoid repeat marking of barcode information. * Array function be equipped with barcode marking, simple and quick. And it’s convenient to mark barcode of multilink PCB or a PCB with variety specifications.
