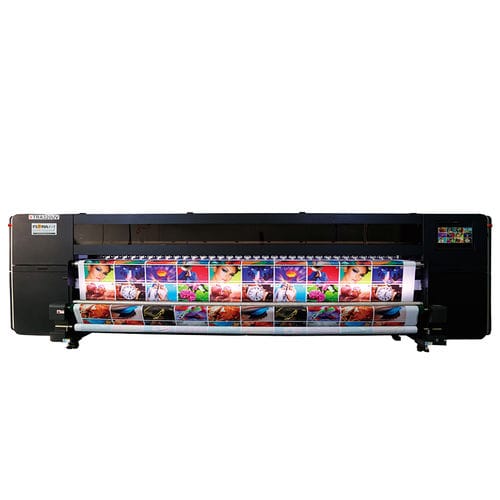

UV inkjet printing machine XTRA320UV
six-colorfor paper

UV inkjet printing machine
UV inkjet printing machine
Add to favorites
Compare this product


Characteristics

Printing technology
UV inkjet
Color
six-color
Applications
for paper

Description

FLORA pinch roller UV printer Grayscale inkjet technology, printhead variable drop size from 6 to 18pl Large printing format 320cm Excellent coverage with standard CMYK vivid and bright colors Plenty of color scheme including white and varnish, light magenta and light cyan Upgraded feed-in and take-up system elimiate media wave and winding problem Excellent stepping motor and movement module supoort high presicion printing Printhead: 4-10 KM1024i 6pl printhead/ 2-8 Ricoh G5 for option Resolution: Up to 605x1200dpi Inkjet technology: On-demand piezoelectricity inkjet mode, support gray level printing Ink type: LED UV inks environment friendly, excellent colors and high durability,  FLORA LED UV ink Color: 6 Colors: C+M+Y+K+W+V Cartride capacity: 2.5L Rip software: Photoprint 12,  Caldera 11 & Onyx 12(Optional) Color control: International standard ICC color control, curve and density adjustable  File format: Tiff, Jepg, Postscript, EPS, Pdf,etc. Media system Fabric collection and delivery system: Vinyl, pet, film, blockout, backlit, synthetic paper, banner, etc. Easy to load and unload materials, suitable for various sizes of materials Media roller specification: The maximum width is 330cm. The diameter is 32cm and the weight is up to 80kg*. Data transmission Data interface: High speed USB transmission Machine size Machine: 492x96.5x155cm Packing box: 503x100x170cm Machine weight: 950KG Operating environment Temperature: 20-30℃ Relative humidity: 35 - 65%, non-condensing. Power requirements Maximum power: 2650W Access parameter: Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 10A

Catalogs

XTRA320UV
XTRA320UV
3 Pages
