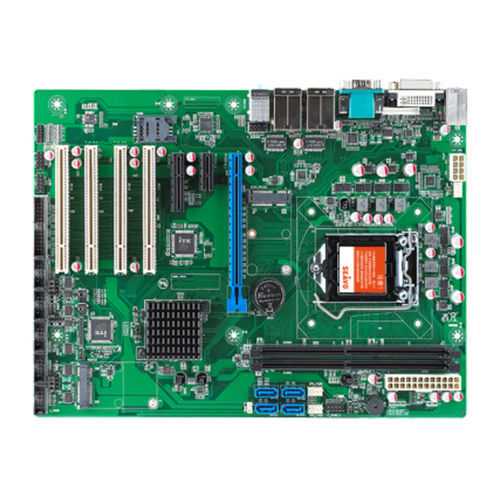

ATX motherboard SV4-H3C34

Intel® Celeron®Intel® Pentium8th Generation Intel® Core™

Memory - DDR4-2400, 2*U-DIMM, up to 32 GB Storage - 4*SATA 3.0, 1*mSATA Expansion Interface 1*PCIe x16, 1*PCIe x4, 1*PCIe x1, 4*PCI, 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported) BIOS - AMI UEFI BIOS System - Windows 7/8.1/10, Linux I/O Interface Ethernet - 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 Serial - 4*RS232, 2*RS232/RS485 USB - 4*USB 3.0, 5*USB 2.0 Audio - Realtek® ALC897 5.1 channel HDA Codec, with MIC/Line-out/Line-in PS/2 - 1*PS/2 Port (Keyboard & Mouse) Parallel Port - 1*LPT Header GPIO - 8*Programmable GPIO Display Display Interface 1*VGA: max resolution up to 1920*1200@60Hz 1*HDMI: max resolution up to 4096*2160@24Hz 1*DVI-D: max resolution up to 1920*1200@60Hz 1*eDP: max resolution up to 1920*1200@60Hz Multiple Display - Dual Mechanical & Environment Dimension - 305*217mm Power Input - ATX PSU Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
