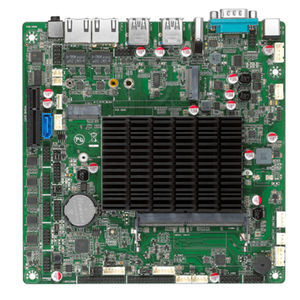

Mini-ITX motherboard SV1a-10016

Intel Atom® x7425EIntel® Processor N97Intel® Processor N50

Memory - DDR4-3200, 1*SO-DIMM, up to 16GB Storage - 1*SATA 3.0 1*M.2 (Key-E, 2242/2280, NVMe PCIe x1/ SATA SSD) Expansion Interface - 1*M.2 (Key-M, 2230, PCIe+USB 2.0, Wifi+BT) BIOS - AMI UEFI BIOS System - Windows 10/11, Linux I/O Interface Ethernet - 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Serial - 6*RS232 USB - 4*USB 3.0, 7*USB 2.0 Audio - Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier Parallel - 1*LPT Header GPIO - 8*Programmable GPIO Others - 1*Cash Drawer Control Wafer, 1*I2C Touch Wafer, 1*Case Open Header Display Display Interface 1*HDMI: max resolution up to 4096*2160@60Hz 1*optional VGA share the same place with HDMI and USB on I/O 1*eDP/LVDS: LVDS, max resolution up to 1920*1200@60Hz eDP, max resolution up to 4096*2160@60Hz 1*eDP: max resolution up to 4096*2160@60Hz Multiple Display - Triple Mechanical & Environment Dimension - 170*170mm Power Input - DC 12V Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
