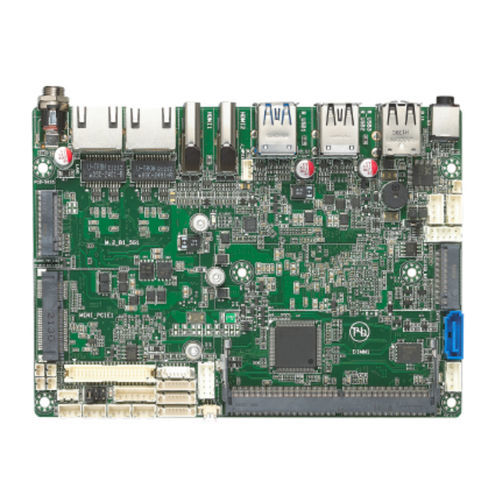

3.5" motherboard SV3b-64126Intel® Celeron® J6412Intel®DDR4 SO-DIMM
Add to favorites
Compare this product
Characteristics
- Format
- 3.5"
- Processor
- Intel® Celeron® J6412
- Chipset
- Intel®
- Memory
- DDR4 SO-DIMM
- Extension slot
- M.2, Mini PCIe
- Applications
- industrial
- Operating system
- Windows 10
- Memory frequency
- DDR4 3200 MHz, DDR4 2666 MHz, DDR4 2933 MHz
- Connectivity
- LVDS, USB 2.0, USB 3.0, RS-232, RJ45, RS-485, eDP, Ethernet
Description
Memory
- DDR4-2666/2933/3200, 1*SO-DIMM, up to 32 GB
Storage
1*SATA 3.0, 1*mSATA
Expansion Interface
1*M.2 (Key-M, 2280, PCIe x2 NVMe SSD)
1*M.2 (Key-B, 3042/3052, PCIe/USB 3.0+USB 2.0, 4G/5G)
BIOS
- AMI UEFI BIOS
System
- Windows 10, Linux
I/O Interface
Ethernet
- 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 3*RS232, 2*RS232/ TTL, 1*RS232/ RS485/ TTL
USB
- 3*USB 3.0, 7*USB 2.0
Audio
- Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
GPIO
- 8*Programmable GPIO
Display
Display Interface
2*HDMI 1.4: max resolution up to 4096*2160@30Hz
1*LVDS/eDP: LVDS, max resolution up to 1920*1200@60Hz
eDP, max resolution up to 4096*2304@60Hz
Multiple Display
- Triple
Mechanical & Environment
Dimension
- 146*105mm
Power Input
- DC 12V
Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
