AC voltage transducer CE- AJI 1-**GS4-0.5
single-phaseDIN railmulti-parameter

AC voltage transducer
AC voltage transducer
Add to favorites
Compare this product


Characteristics

Electrical characteristics
AC, single-phase
Other characteristics
DIN rail, multi-parameter
Voltage

Min.: 1 V

Max.: 500 V

Description

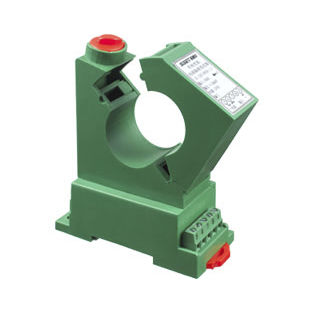

This product is a split core and electrical integrated measurement single-phase intelligent transducer. it can measure the full-parameter of the 1-phase AC circuit. Using high-precision 24-bit dedicated AD chip, the ratio dynamic range can be up to 1000: 1, the measurement parameters are voltage, current, frequency, active power, reactive power, power factor, total accumulative energy and other electrical parameters with high accuracy, good stability and high communication speed, he completely isolated processing technology is with anti-interference ability. Measurement of electrical parameters through the RS-485 digital interface output to achieve long-distance transmission, the product MODBUS protocol is complete compatible with a variety of configuration software or PLC equipment MODBUS (RTU) protocol. It can be applied to power, room monitoring, industrial measurement and other fields. Features - Available with wide power supply: DC: 10-30V or 10-55V or AC/DC:85-265V. - On-site installation is easy, opening and closing installation, convenient and quick. - Can be bipolar measurement, with positive and negative active power and cumulative energy measurement function. - The intelligent transducer with the smallest size and wide current measurement range in the peer. - Energy has positive and negative cumulative function, with power-down storage. - With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication. - High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.
