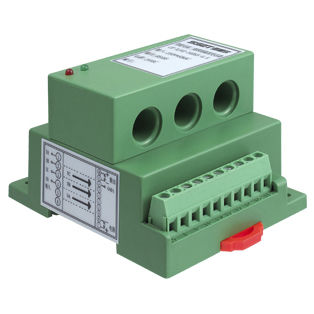

AC voltage transducer CE- AJ41-3**DS5-0.5 series

three-phaseDIN railmulti-parameter

This product is an intelligent isolation transducer of electrical parameter acquisition and transmission. It can measure the full-parameter of three-phase four-wire AC loop. Using high-precision 24-bit dedicated AD chip, the ratio dynamic range can be up to 5000: 1, the measurement parameters are voltage, current, frequency, active power, reactive power, power factor, total accumulative energy and other electrical parameters with high accuracy, good stability and high communication speed. The completely isolated processing technology is with anti-interference ability. Measurement of electrical parameters through the RS-485 digital interface output to achieve long-distance transmission, the product MODBUS protocol is complete compatible with a variety of configuration software or PLC equipment MODBUS (RTU) protocol. It can be applied to power, room monitoring, industrial measurement and other fields Features - Available with wide power supply: DC: 11-28V, AC/DC: 85-265V. - Digital and analog output at the same time, digital is communication output and analog output is programmable. - The analog output can be freely programmed to set the positive and negative power measurement or the inductive and capacitive polarity measurement of the power factor. - Analog output can be a 1-way current and a 1-way voltage signal at the same time, eight output functions of 0-5V/0-20mA or 1- 5V /4-20mA or 2.5±2.5V/10±10mA or 3±2V /12±8mA, can be set freely. - Communication output can be freely set the communication rate and parity, the maximum communication speed is up to 115200 bps.
