Mechanical press line

electricpneumaticforming

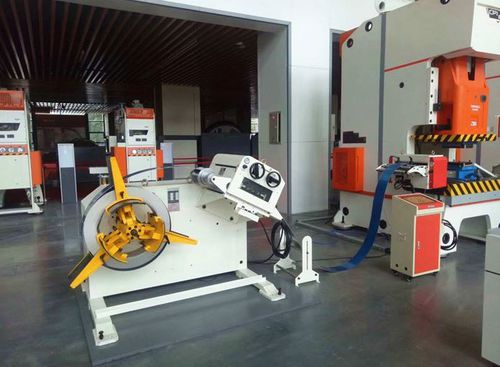

Metal stamping is a cold-forming process that makes use of dies and stamping presses to transtorm sheet metal into different shapes. Usually in the metal stamping line, it should include a decoiler straightener machine, a NC servo feeder machine which equipped with stamping press and progressive die. Material Thickness: 0.3-3.2m Coil width: 20-600mm Coil line configuration Decoiler Straightener Machine GL Coil servo feeder RNC/NCF Mechanical press machine/Shear APA/APC/APM Progressive(For optional) Unwinder machine MT/MT-F(For optional) Metal stamping is a cold-forming process that makes use of dies and stamping presses to transform sheet metal into different shapes.Sunrui machine provides all kinds of reliable and professional solutions for metal sheet stamping line. In some industry, for middle thicknes materials with high precision leveling requirements, the integral of metal sheet stamping lines include a combo decoiler and straightener, a servo feeder machine, a mechanical press machine or shear machine and a progressive die. The configuration of Precision Pressfeed Stamping Line. Step-1: Decoiler straightener, Loading coil and uncoilling coil and straigthening the Coil strips. Step-2: Coil Servo Feeder machine, Feed coil strips to press machine. Step-3: Stamping press machine with the progressive die, pressing to the end product.
