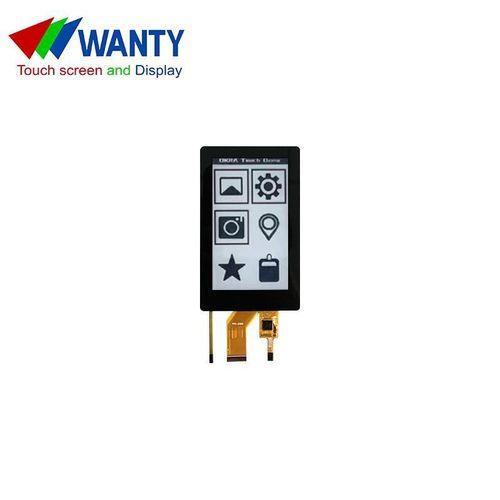

E-Paper display module TYKEGM037001T01

TFTcapacitive touch screendot-matrix

Overview
The 3.7-inch E Ink display TYKEGM037001T01 integrates a capacitive touch panel and a low‑power front light to provide a reflective, low‑energy display solution for battery‑powered and always‑on devices. With a 416×240 resolution (130 PPI) and near‑180° viewing angle, it is suitable for smart labels, handheld instruments and portable note devices.

Features

• Ultra-low power consumption: E Ink reflective technology consumes power only during refresh cycles.
• Readable in bright sunlight: Reflective panel maintains visibility in direct sunlight for outdoor applications.
• Built-in front light: Low‑power front light enables use in low‑light conditions without a backlight.
• Eye-friendly display: No flicker and no blue‑light emission for comfortable extended viewing.
• Wide viewing angle: Nearly 180° visibility from different positions.
• Touch functionality: Integrated capacitive touch panel for accurate, responsive interaction.
• Compact and lightweight: Small form factor for space‑constrained, portable products.
• Flexible interfaces: Supports SPI, I²C and other standard interfaces for system integration.

Benefits

• Excellent readability across environments thanks to reflective E Ink combined with front light.
• Reduced eye strain and comfortable long‑term use due to flicker‑free, low‑blue‑light display.
• Improved user interaction via capacitive touch.
• Easy integration into compact or handheld products.
• Energy‑efficient and long service life, suitable for low‑maintenance applications.

Production & Stock

• Production State: In Production
• Stock Quantity: 10 Pieces

Mechanical Data
NO. | ITEM | SPECIFICATION | UNIT
1 | Dot Matrix | 416(H)×240(V) | -
2 | Screen Size | 3.7 | Inch
3 | Pixels Per Inch | 130 | -
4 | ActiveArea | 81.536(H)×47.04(V) | mm
5 | Pixel Pitch | 0.196×0.196 | mm
6 | TFT Area | 92.99(H)×53.00(V) | mm
7 | Outline Dimension | 128.99(H)×53.00(V)×0.912(D) | mm
8 | Pixel Configuration | Square | -
9 | Driver IC | SEE370 | -
10 | Module Weight | TBD±10% | Gram

Customization & Integration Notes

• Touch panel integration: Capacitive touch can be included; may require bezel or accessory adjustments.
• Custom display driver: Possible for specific requirements; development expertise and programming are needed.
• Front light integration: Module includes a front light; E Ink is reflective and typically does not require backlighting for normal use.
• Hardware design: Touch implementations may require custom PCB layout and design tools.

Manufacturer
Manufacturer complies with international quality standards. Over 10 years of market experience. Direct factory supplier enabling competitive pricing and added value.

Technical specifications

• Model: TYKEGM037001T01
• Resolution: 416(H)×240(V)
• Screen size: 3.7 inch
• PPI: 130
• Active area: 81.536(H)×47.04(V) mm
• Pixel pitch: 0.196×0.196 mm
• TFT area: 92.99(H)×53.00(V) mm
• Outline dimension: 128.99(H)×53.00(V)×0.912(D) mm
• Pixel configuration: Square
• Driver IC: SEE370
• Module weight: TBD±10% g
• Interfaces: SPI, I²C and other supported interfaces
• Touch: Integrated capacitive touch panel option
• Front light: Built-in low-power front light
• Viewing angle: Nearly 180°
• Typical applications: Smart labels, handheld instruments, portable note devices
