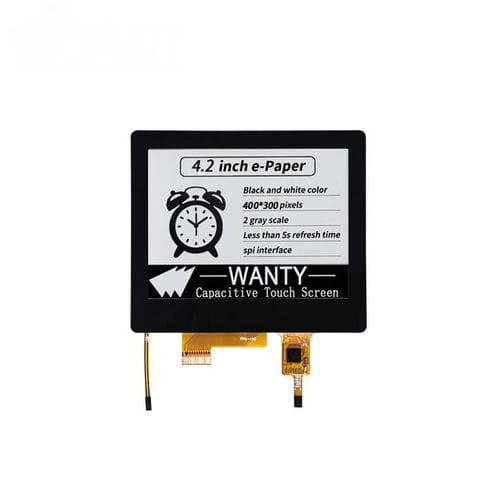

E-Paper display module TYKEGM042001T09

TFTcapacitive touch screendot-matrix

Product Overview
The 4.2-inch e-paper display module TYKEGM042001T09 integrates a 400×300 high-resolution E-Ink panel with a built-in front light and an optional capacitive touch panel. Designed for extremely low power consumption and long-term content retention, it delivers paper-like readability in direct sunlight and low-light conditions. Suitable for industrial, medical and IoT applications requiring clear visuals, user interaction and energy efficiency.

Features

• Display Size: 4.2 inches
• Resolution: 400 (H) × 300 (V) dot matrix (119 DPI)
• Touch: Capacitive touch panel (resistive optional)
• Front Light: Integrated for low-light visibility
• Low Power: Consumes power only during screen updates
• Interfaces: SPI common; I2C or higher-speed interfaces available

Benefits

• Battery-friendly operation—energy used primarily on refresh
• High readability—E-Ink contrast with front illumination for any lighting
• Intuitive control—capacitive touch support for user interaction
• Stable image retention—content remains without continuous power
• Compact and lightweight—suitable for portable or handheld devices
• Flexible integration—fits medical devices, industrial tools, smart tags, e-readers and IoT systems

Technical Data (table)
NO. | ITEM | SPECIFICATION | UNIT
1 | Dot Matrix | 400(H)×300(V) | -
2 | Screen Size | 4.2 | Inch
3 | DPI | 119 | -
4 | Active Area | 84.80 (H)×63.60 (V) | mm
5 | Pixel Pitch | 0.212×0.212 | mm
6 | TFT Area | 91.0 (H)×77.0 (V) | mm
7 | Outline Dimension | 91.0 (H)×95.5 (V) ×1.001(T) | mm
8 | Pixel Configuration | Rectangle | -
9 | Driver IC | SEE330 | -
10 | Module Weight | TBD±10% | g

Customize & Integration
Customization options include touch type (capacitive or resistive), shape customization, controller-board modifications and interface selection to match project requirements.

Specifications

• Model: TYKEGM042001T09
• Resolution: 400 (H) × 300 (V) (dot matrix)
• Screen Size: 4.2 inch
• DPI: 119
• Active Area: 84.80 (H) × 63.60 (V) mm
• Pixel Pitch: 0.212 × 0.212 mm
• TFT Area: 91.0 (H) × 77.0 (V) mm
• Outline Dimension: 91.0 (H) × 95.5 (V) × 1.001 (T) mm
• Pixel Configuration: Rectangle
• Driver IC: SEE330
• Module Weight: TBD ±10% g
• Touch: Capacitive touch panel (resistive optional)
• Front Light: Built-in front light for low-light visibility
• Power: Very low power consumption; energy used primarily on refresh
• Interfaces: SPI commonly used; I2C or higher-speed interfaces possible
• Typical Applications: Medical devices, industrial tools, smart tags, e-readers and IoT devices
