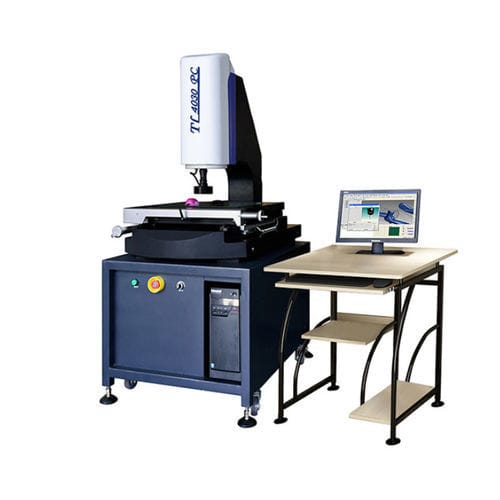

Temperature measuring instrument TL4030 PC

dimensionaltransmissiondigital

Dexin optical measuring instrument multifunctional coordinate measuring machine 1. Model introduction The TL series fully automatic multi-functional image coordinate measuring machine is a high-efficiency measuring machine of Dongguan Dexin Optical Instrument Co., Ltd., with a precision structure designed using the internationally advanced finite element analysis method. The design: 1. The whole machine adopts 00-grade marble super large base and column structure to ensure the stability of the machine. It is not easy to deform and has a cross workbench; 2. The three-axis guide rails all use high-precision V-shaped and Z-axis Taiwan HIWIN guide rails, which are made of the same material as the machine body, so they have good temperature stability, resistance to effective deformation, good rigidity, and minimal dynamic geometric error deformation; 3. All three axes use high-precision polished rods and screw rod transmission devices, which greatly improves the stability of the three axes; The Z-axis adopts a fully closed-loop digital controller with American DSP technology, and is equipped with an American high-performance hybrid silent stepper motor, forming a truly digitally controlled motion mechanism with superior performance. And the internationally advanced AC-OPTICAL measurement software package with independent intellectual property rights makes it a very cost-effective product among similar models. It will meet your needs and provide you with a complete measurement solution. 2. Technical specifications and parameters Three-dimensional measurement system: British RENISHAW MCP Kit1 manual rotating probe. British RENISHAW MCP Kit1 manual rotating probe
