Temperature measuring instrument DH432

transmissionopticalresistance

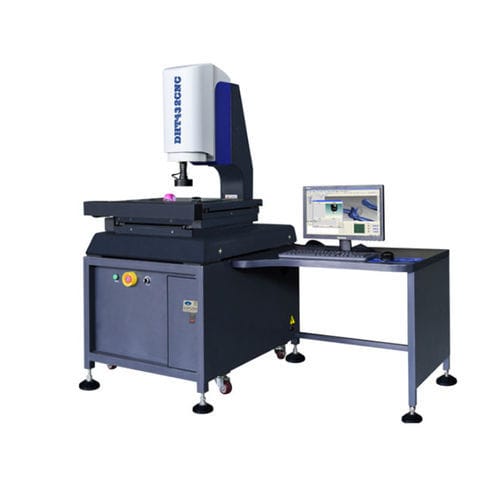

Dexin optical measuring instrument high-precision fully automatic multi-function coordinate measuring machine 1. Model introduction DH high-precision series fully automatic multi-functional image coordinate measuring machine is a high-efficiency measuring machine of Dongguan Dexin Optical Instrument Co., Ltd., with a precision structure designed using the internationally advanced finite element analysis method. In terms of design: 1. The whole machine adopts 00-grade marble super large base and column structure to ensure the stability of the machine. Cross workbench; 2. The three-axis guide rails all use high-precision V-shaped (specially made) and Z-axis Taiwan HIWIN guide rails, which are made of the same material as the machine body, so they have good temperature stability, resistance to effective deformation, good rigidity, and minimal dynamic geometric error deformation; 3. All three axes adopt high-precision special screw transmission devices, which greatly improves the stability of the three axes; Equipped with the DEXIN fully closed-loop control system and the internationally advanced AC-OPTICAL measurement software package with independent intellectual property rights, it becomes a very cost-effective product among similar models. It will meet your needs and provide you with a complete measurement solutions. 4. A full set of independent intellectual property rights: hardware, software, control systems, subsequent upgrades and updates of external products have strong independent advantages;
