Rotary transfer machine

CNC1-positionprogrammable

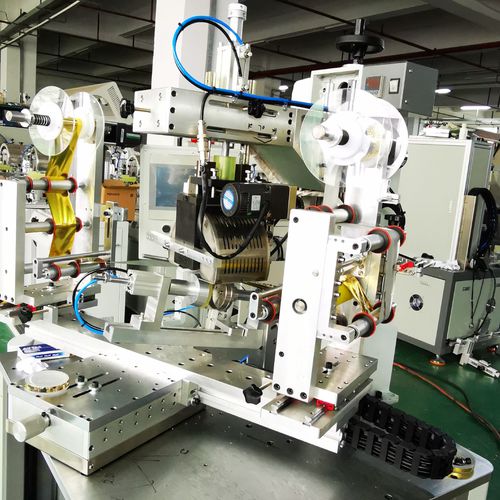

Servo-Driven Thermal Transfer Machine for Complex & Irregular Shapes Caps Containers Bottles Tubes
Overview
This advanced servo-driven thermal transfer machine is engineered for high-precision, full-color decoration on a vast range of container shapes and materials. It expertly handles irregular caps, conical, round, oval, and square surfaces, making it equally suitable for both plastic containers and glass bottles. By utilizing multiple servo motors and an intelligent HMI, the system automatically adjusts and rotates to perfectly conform to the workpiece geometry, ensuring vibrant, durable image transfer on complex products such as jars, caps, and premium glassware.
Technical Specifications

• Production Speed: 600 – 1,500 pcs/hour
• Max. Transfer Area: Diameter 10 – 100 mm | Width 30 – 300 mm
• Power Supply: AC380V, 5 kW
• Compressed Air: 0.6 MPa
• Compatible Materials: Plastic, Glass

Key Features & Advantages

• Unmatched Shape Versatility: A multi-servo system enables intelligent, automatic rotation and positioning, ensuring perfect contact and consistent quality on conical, oval, square, and other non-round surfaces.
• Vibrant, Full-Color Transfers: Applies bright, high-resolution images directly onto the substrate, creating a durable and visually striking finish.
• Material Flexibility: Seamlessly processes both plastic and glass containers, eliminating the need for separate machines for different materials.
• Intuitive Operation: The intelligent HMI (Human-Machine Interface) allows for easy setup, recipe storage, and control, simplifying operation even for complex jobs.
• High-Quality & Efficient: Delivers stable, professional-grade results at production-ready speeds, ideal for short to medium runs of premium packaged goods.

Typical Applications
Ideal for decorating:

• Spirits & Glassware: Vodka/glass bottles, wine bottles, glass cups.
• Cosmetics & Personal Care: Jars, irregular-shaped caps, plastic bottles.
• Premium Packaging: Conical containers, specialty giftware.
