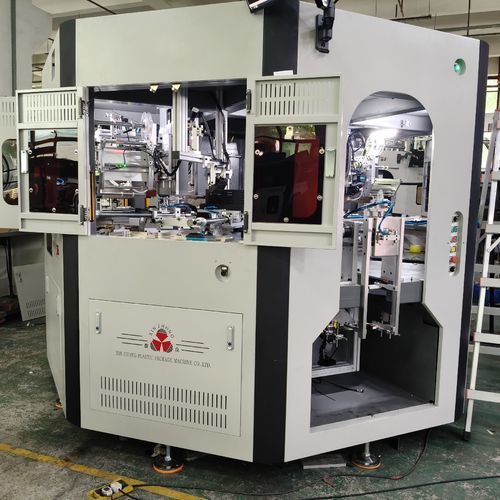

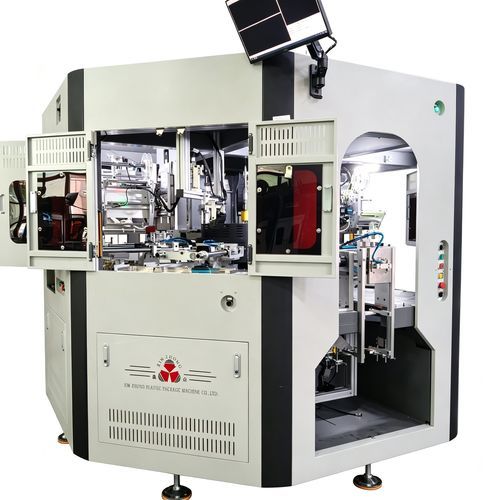

Glass bottle hot foil stamping machine RZ-106

with automatic feeder

Product Overview
The RZ‑106 is an automatic rotary servo heat transfer machine engineered to decorate cylindrical and prismatic containers (glass and plastic) in round, oval, square and flat profiles. It completes multi‑color transfer printing on multiple faces in a single cycle with high registration accuracy and durable results. Integrated automated loading/unloading and servo drive control minimise manual handling and support continuous high‑volume production.

Technical Specifications

• Model: RZ‑106
• Output: 1,800 – 2,700 pcs/hour
• Transfer diameter / width: Ø 30 – 100 mm (or flat width equivalent)
• Product length: 20 – 300 mm
• Machine dimensions (L×W×H): 3000 × 3000 × 2300 mm
• Voltage: 380V / 220V (optional)
• Drive system: Fully servo‑driven
• Indexing system: High‑precision divider
• Working stations: 12 (customizable)

Key Features

• Versatile shape & multi‑side printing – Accepts round, oval, square and flat profiles; prints on front/back, circumference or top faces via jig and program changes.
• Multi‑color capability – Supports up to 3‑color roller thermal transfer and hot stamping in a single pass for complex decorative effects.
• Fully automatic handling – Integrated robotic loading and unloading for continuous operation and reduced labor.
• Optional surface pretreatment – Flame, hot‑air or plasma options to improve ink/adhesive adhesion on glass, plastic or coated surfaces.
• Vision positioning available – Optional vision system for precise alignment and perfect registration on irregular or high‑tolerance parts.
• Precision drive – Imported high‑precision divider coupled with servo motors ensures accurate indexing and repeatable print quality.
• User‑friendly HMI – Intuitive touchscreen for fast setup, quick job changeover and real‑time monitoring.

Typical Applications

• Glass bottles (round, oval, square, flat) for beverages, spirits, cosmetics and pharmaceuticals
• Plastic containers and jars
• Decorative packaging and gift items
• Any cylindrical or prismatic product requiring multi‑color, multi‑surface decoration

Detailed Specifications

• Model: RZ‑106
• Capacity: 1,800 – 2,700 pcs/hour
• Transfer range: Ø 30 – 100 mm (or equivalent flat width)
• Product length range: 20 – 300 mm
• Footprint: 3000 × 3000 × 2300 mm (L×W×H)
• Voltage options: 380V / 220V
• Drive: Full servo drive
• Indexing: High‑precision divider
• Stations: 12 (configurable)
