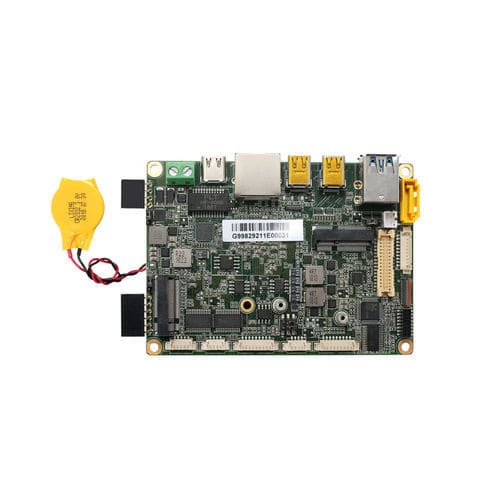

3.5" SBC ENC-G998

Intel® Celeron®SATARS232

CPU Socket - onboard BIOS - SPI 128M,CMOS battery CR2302 Max. - Up to 16GB RAM Socket - SODIMM Display - Graphic Controller - Intel® Gemini Lake Graphics ENC-G998 - Support 2 x Mini DP Socket ENC-G998HE - Support 1 x standard HDMI Socket eDP - 24Bit eDP Dual channel display, Max 4K@60Hz MIPI CSIx4 - Ethernet - Controller - LAN1: RTL8111F GbE LAN, Pin-Header Power supply module (>30W,48V input@550mA) Audio - Controller - Realtek HD ALC662 audio codec+15W amplfier Super I/O - Controller - IT8786E SIO H/W Monitor - Watch Dog Timer - Programmable 1 ~ 255 sec; Support System Reset I/O interface - USB - 2* USB3.0 Port 1* USB3.0 Pin-header 4*USB2.0 / 1.1,Pin-header Serial Port - 1 x RS232/RS485 optional,1 x RS232 Type-c - With power and USB 3.0 (Single 1-way USB3.0) GPIO - 7Bit GPIO(7GPIO+5V+GND SINGLE),3.3V@24mA M2 Socket - M2 E-KEY 2230 support USB 2.0/PCIe 1X device Controller - M2 B-KEY 2242+2260 support USB 2.0/SATA device Storage - SATA - SATA socket Power - Power type - DC-in 12-24V Power consumption - Typical PW:10W Environment - Operating Temp. - -20°C ~ 70°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity,non-condensing Storage Humidity - 0% ~ 90% relative humidity,non-condensing Formfactor - Dimensions - 100*72mm Certificate - 3C,FCC, CE, RoHS compliant
