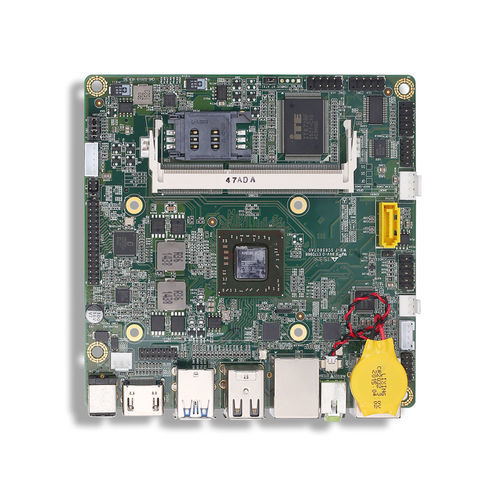

Nano-ITX SBC DS-2019

quad-coreAMDSATA

BIOS Memory - Architecture - Single Channel DDR3L-1600 low voltage Display - Graphic Controller - AMD® HD8200/8300/8400 series LVDS - Support dual channel 24bit output, 2.0mm Pinheader,selecting resolution via jumper setting. LCD backlight control, Max 12V@3A flow capacity VGA - Pinheader Max. resolution: 1920 * 1080 Max. resolution: 1920 * 1200 LAN - Controller - LAN1: Realtek 8111E GbE Lan WIFI - N/A Audio - Controller - Realtek ALC662 HDaudio decoder (left&right channel + Mic) Support 2W@8Ω amplifier,Support dual-channel output. Super I/O - Controller - ITE8728 2*serial port SIO, support system temp. monitoring. H/W Monitor - Watch Dog Timer - Programmable 1 ~ 255 sec./min.; Support System Reset Fan - DC +12V Double roller CPU fan. 4* USB 2.0 /1.1 Pinheader compatible Serial Port - Com1-COM2 3-wire RS232 Pinheader GPIO - 8bit, provide routine, free-defined I/O, 3.3V@24mA level. Expansion - SMBUS - Reserved Mini-PCIe - 1 * Full size Mini-PCIe socket, support PCIe or USB devices UIM Scoket - 1 * standard 3G UIM socket Storage - SATA - 1* standard 7Pin SATA-III & power connector,Max. transmission rate: 3Gb/s M-SATA - 1 * half size Mini-PCIe, Support M-SATA SSD,Max. transfer rate: 3Gb/s Power Consumption - Typical Power:25W Front_panel - - POWER LED HDD LED RESET POWER BUTTOM Environment - Operating Temp - - 0°C ~ 50°C Storage Temp - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Form Factor - Dimensions - 120 mm * 120 mm Nano-ITX Weight Regulatory - Compliance - FCC, CE, RoHS compliant
