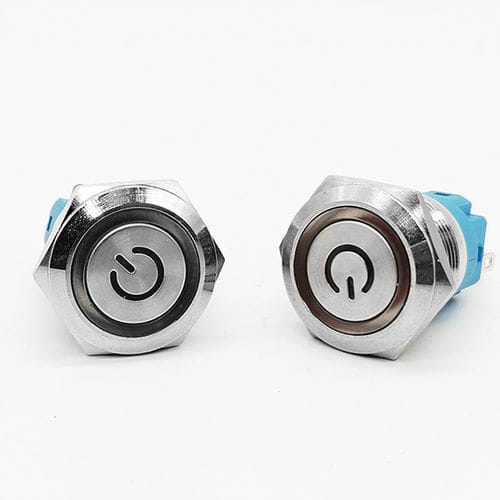

Waterproof push-button switch

IP66LEDlatching action

22mm Metal Push Button Switches Metal Button Switch Metal Button Waterproof Button Switch button switches Product description: 22mm Hyperplane high round actuator waterproof metal push button switch 1NO1NC SPST contact Descriptions: Model Number:22mm Metal Push Button Switch LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v Mounting hole diameter:16mm Head shape:Flat head/ High head Crust material:Stainless Steel/Copper plating/Aluminum oxide Contact configuration:1NO1NC/2NO2NC Operation type:Momentary or Latching Emitting Type:Ring LED/Symbol LED/Dot LED Switch Rating:3A / 250VAC Features: 1.3A metal push button switch 2.Optional connector,To ensure contact performance,reduce waste of labor; 3.With concave design,operation is more convenient; 4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation; 5.Waterproof and dustproof grade up to IP67; 6.Mechanical life: up to 600,000times,it can work at -30℃~80℃; 7.1NO1NC function 8.Customzied: Acceptable 9.16MM SPST ON OFF IP66 IK10 momentary stainless steel push button
