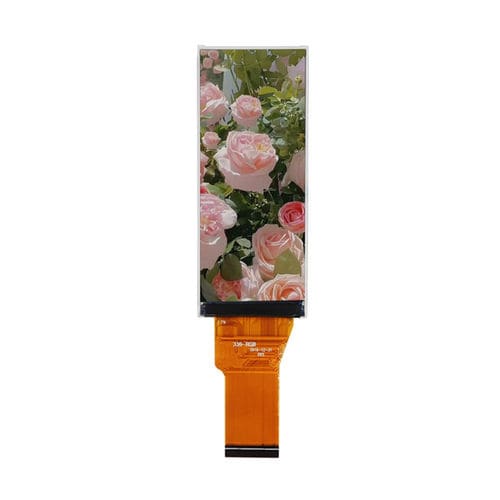

TFT LCD display module YX29002A

IPScolor2.9"

Product Overview
The YX29002A is a 2.9-inch IPS TFT LCD module with 376×960 RGB resolution and SPI + 18-bit RGB interface. Equipped with the ST7701S driver IC, it offers All O'Clock IPS viewing, high pixel density and consistent color performance. The ultra-slim mechanical design facilitates integration in industrial control systems, medical devices, smart-home products, handheld terminals, portable instruments and embedded HMI applications.

Basic Specifications
Display size: 2.9 inch
LCD type: IPS TFT-LCD, transmissive
Resolution: 376 (RGB) × 960
Active area: 26.51 × 67.68 mm
Outline dimensions: 31.20 × 76.60 × 2.11 mm
Pixel pitch: 0.0825 × 0.0825 mm
Viewing direction: All O'Clock
Driver IC: ST7701S
Interface: SPI + 18-bit RGB
Backlight: 4 × white LEDs
Analog operating voltage: 2.8 V (typ.)

Optical Characteristics
Contrast ratio: 600:1
Color gamut: 60%
Brightness: 300 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 80°/80°/80°/80°
Response time: 25 ms

Operating Conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤90% RH (60°C)

Mechanical Drawing
Mechanical drawing and module outline are provided for integration and mounting reference.

Technical specifications

• Model: YX29002A
• Display size: 2.9 inch
• Resolution: 376×960 (RGB)
• Panel type: IPS, transmissive TFT
• Interface: SPI + 18-bit RGB
• Driver IC: ST7701S
• Active area: 26.51 × 67.68 mm
• Outline: 31.20 × 76.60 × 2.11 mm
• Backlight: 4 × white LEDs
• Brightness: 300 cd/m²
• Contrast ratio: 600:1
• Pixel pitch: 0.0825 × 0.0825 mm
• Viewing angle: All O'Clock (80°/80°/80°/80°)
• Operating temp: -20°C to +70°C
• Storage temp: -30°C to +80°C
• Typical analog operating voltage: 2.8 V
