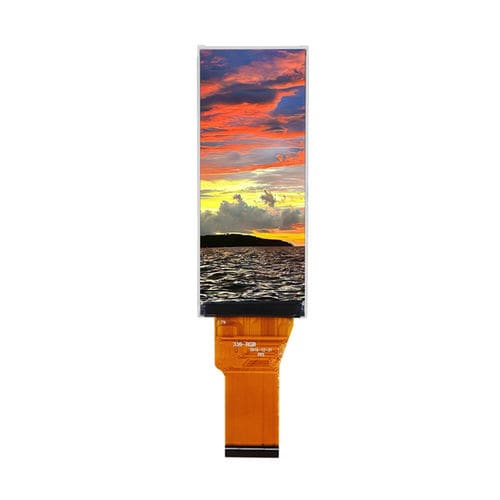

TFT LCD display module YX32010A

IPScolor320 x 820

Product Overview
The Yousee YX32010A is a 3.2-inch IPS TFT-LCD display module with 320×820 RGB resolution and a combined SPI + 16-bit RGB interface. Powered by the ST7701S driver IC, it delivers wide All O'Clock IPS viewing, consistent color reproduction and smooth graphics rendering. The dual-interface design supports simple MCU initialization via SPI and high-speed RGB data transfer for embedded, IoT and industrial applications.

Key Features

• 3.2-inch IPS TFT-LCD, transmissive
• Resolution: 320 (RGB) × 820
• Interface: SPI + 16-bit RGB
• Driver IC: ST7701S
• Backlight: White LED × 4
• Wide viewing angle (All O'Clock)

Basic Specifications

• Active area: 26.40 × 67.65 mm
• Outline dimensions: 31.20 × 76.60 × 2.40 mm
• Pixel pitch: 0.0825 × 0.0825 mm
• Analog operating voltage: 2.8 V (typ.)

Optical Characteristics

• Brightness: 300 cd/m²
• Contrast ratio: 600:1
• Color gamut: 60%
• Response time: 25 ms
• Viewing angle (CR ≥ 10): 80°/80°/80°/80°
• Luminance uniformity: 80%

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (at 60°C)

Mechanical

• Outline dimensions: 31.20 × 76.60 × 2.40 mm
• Active area: 26.40 × 67.65 mm

Applications

• Industrial human–machine interfaces (HMIs)
• Smart controllers and smart home devices
• Medical instruments
• Portable terminals and IoT devices
• Embedded display systems

Technical specifications

• Model: YX32010A
• Display size: 3.2 inch
• Resolution: 320 (RGB) × 820
• LCD type: IPS TFT-LCD, transmissive
• Driver IC: ST7701S
• Interface: SPI + 16-bit RGB
• Backlight: White LED × 4
• Brightness: 300 cd/m²
• Contrast ratio: 600:1
• Color gamut: 60%
• Viewing angle: All O'Clock
• Response time: 25 ms
• Analog operating voltage: 2.8 V (typ.)
