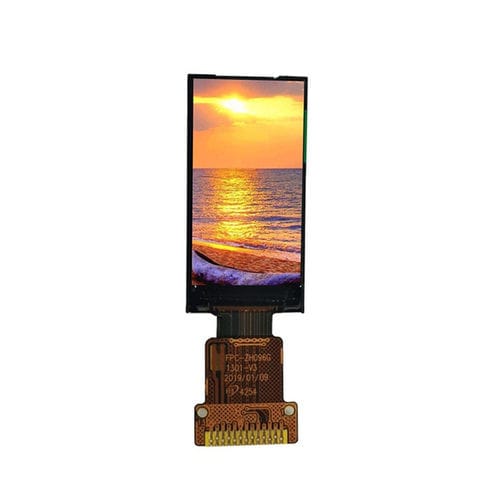

TFT LCD display module YX10001A

TFTcolorgraphic

Description
The YX10001A is a 0.96-inch compact TFT LCD display module featuring 80×160 RGB resolution and a 4SPI interface, designed for wearable devices, portable instruments, smart home products, handheld terminals, medical devices, and IoT applications. Powered by the ST7735S driver IC, the module provides stable image performance, fast display response and an All O'Clock viewing angle for clear visibility from every direction. The 4SPI serial interface simplifies hardware design while offering reliable communication with MCU-based embedded systems.

Key physical dimensions
Outline dimension: 13.70 × 28.10 × 1.97 mm
Active display area: 10.80 × 21.70 mm
Pixel pitch: 0.1926 × 0.1926 mm

Electrical & interface
Analog operating voltage: 3.2 V (Typ.)
Logic operating voltage: 1.8 V (Typ.)
Interface: 4SPI
Backlight: White LED × 1

Typical applications

• Wearable electronics
• Portable medical devices
• Industrial handheld terminals
• Smart sensors and IoT devices
• Consumer electronics and smart home products

Basic Specifications (table)
Display Size: 0.96 inch
LCD Type: TFT-LCD, Transmissive
Resolution: 80 (RGB) × 160
Active Area: 10.80 × 21.70 mm
Outline Dimensions: 13.70 × 28.10 × 1.97 mm
Pixel Pitch: 0.1926 × 0.1926 mm
Viewing Direction: All O'Clock
Driver IC: ST7735S
Interface: 4SPI
Backlight: White LED × 1
Analog Operating Voltage: 3.2 V Typ.
Logic Operating Voltage: 1.8 V Typ.

Optical Characteristics (table)
Resolution: 80 × 160
Contrast Ratio: 800 : 1
Color Gamut: 60%
Brightness: 400 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 80° / 80° / 80° / 80°
Response Time: 25 ms

Operating Conditions (table)
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤90% RH (60°C)

Technical specifications

• Model: YX10001A
• Display size: 0.96 inch
• Resolution: 80(RGB) × 160
• LCD type: TFT-LCD, Transmissive
• Driver IC: ST7735S
• Interface: 4SPI (serial)
• Active area: 10.80 × 21.70 mm
• Outline dimension: 13.70 × 28.10 × 1.97 mm
• Pixel pitch: 0.1926 × 0.1926 mm
• Backlight: 1 × White LED
• Analog operating voltage: 3.2 V (Typ.)
• Logic operating voltage: 1.8 V (Typ.)
• Brightness: 400 cd/m²
• Contrast ratio: 800:1
• Color gamut: 60%
• Viewing angle: All O'Clock (typical 80°/80°/80°/80°)
• Response time: 25 ms
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤90% RH (60°C)
