Analog industrial telephone YT-DL

VoIPSIPPoE

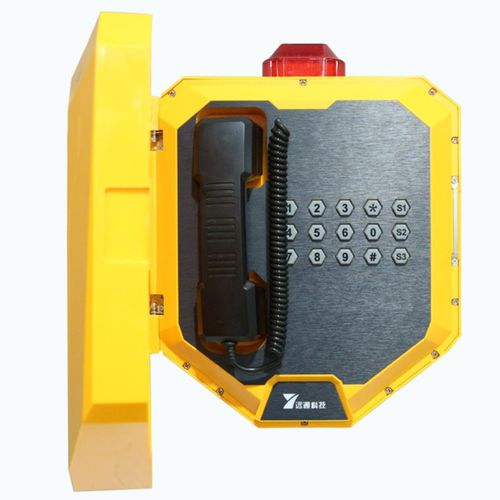

The YT-DL series of waterproof telephones are made of nylon and fiber waterproof housing with a magnetic door cover to prevent dust and moisture from entering, thereby prolonging the product's life cycle and improving its reliability and stability of the product. It is especially suitable for installation in areas with high dust, humidity, high noise, and outdoors. Main Features • Support Analogue and VOIP version • Robust housing, constructed of Polyamide-66 Glassfiber • Vandal resistant Keypad 15 digit • Weatherproof and corrosion resistant handset with curly handset cable • Weatherproof protection IP66 • Option flash light on the top • Echo cancellation • Embed mounting, simple installation • Call control features support hot-line • DTMF: SIP info, DTMF Relay, RFC2833 • With I/O dry contact for controlling • coming call indicator(option) • Tamper resistant fixings • Option loudspeaker for broadcastin Technical Specification Analogue Version Power Supply From the analogue telephone network Supply Voltage 24 VDC to 65 VDC Supply Current 20 mA DC to 100 mA DC Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23. SIP Version Power Supply PoE or 12V DC Power Consumption -Idle:1.5W -Active:1.8W SIP Protocol SIP 2.0 (RFC3261) Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729 Communication Type Full duplex Ambient conditions Protection type IP 66 as per EN60529 Operating temperature -25°C to +70°C Storage temperature -25°C to +85°C
