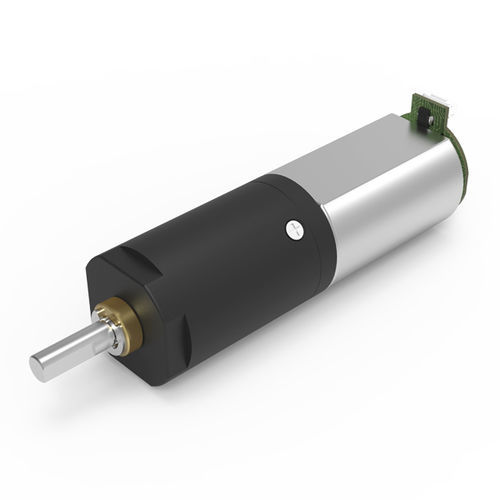

Brushed gear-motor ZWBPD010010 seriesDCplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushed
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- pinion shaft
- Torque
- 0 - 0.1 Nm
- Number of stages
- three-stage, single-stage, four-stage
- Performance
- high-speed
- Product applications
- for medical equipment, for automobiles, for robotics, for home appliances, for power tools
- Other characteristics
- custom-made, modular
- Gear ratio
Max.: 809 unit
Min.: 3 unit
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)- Rotational speed
Max.: 3,917 rpm
(24,611.2368 rad.min-1)Min.: 17 rpm
(106.8142 rad.min-1)
Description
Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤0.3mm ≤0.3mm Radial Loading on Output Shaft ≤20N ≤30N Gear backlash ≤3° Operating Temperature -30℃ ~ +100℃ Parameters： Gea
Diameter
10mm
Voltage Range
3-12V
Max. Transmittable Power
0.2W
Max. Continuous Torque
0.13Nm
