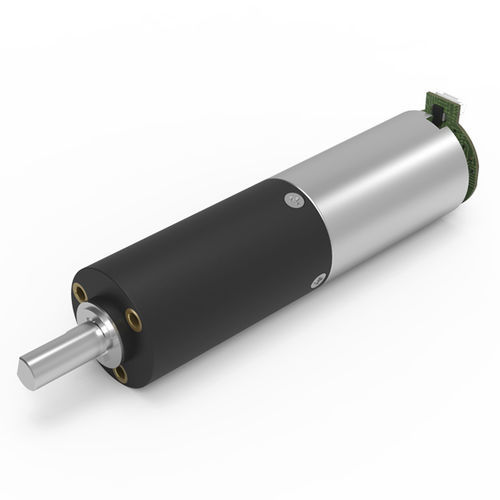

Brushed gear-motor ZWBPD022022 seriesDCplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushed
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 1 - 5 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm
- Number of stages
- three-stage, single-stage, four-stage
- Performance
- high-speed
- Product applications
- for medical equipment, for automobiles, for robotics, for home appliances, electronic equipment, for power tools
- Other characteristics
- custom-made, coreless
- Gear ratio
Min.: 4 unit
Max.: 1,296 unit
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)- Rotational speed
Min.: 6 rpm
(37.6991 rad.min-1)Max.: 1,875 rpm
(11,780.9725 rad.min-1)
Description
Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤0.3mm ≤0.3mm Radial Loading on Output Shaft ≤20N ≤30N Gear backlash ≤3° Operating Temperature -30℃ ~ +100℃ Parameters： Gea
Diameter
22mm
Voltage Range
3-24V
Max. Transmittable Power
0.5-4.5W
Max. Continuous Torque
0.8Nm
