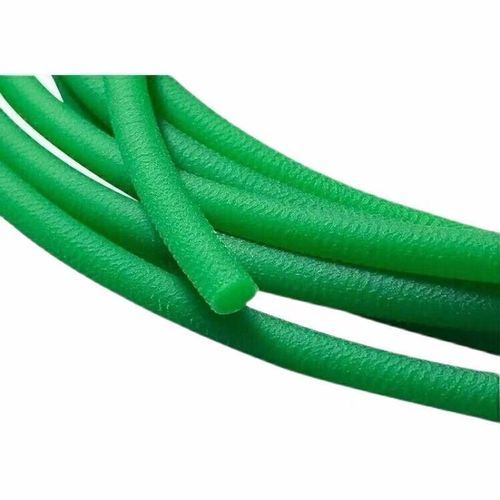

Round belt

endlessplainpolyester

Product description
Our PU round belts are manufactured from 100% cast polyurethane (PU) available in polyester- or polyether-based formulations. They provide high elasticity and excellent rebound, maintaining tension and minimizing slip in multi-pulley, spiral and complex conveyor configurations. Suitable for continuous conveying and light power transmission where flexibility and dimensional stability are required.

Key benefits

• High elasticity & rebound – maintains tension under variable loads and reduces drive slip.
• Wide operating temperature – continuous performance from -20°C to +80°C, short-term up to +100°C.
• Oil and abrasion resistance – resists oils, greases and many industrial chemicals to extend service life.
• Low noise & smooth operation – damping surface protects conveyed products and bearings.
• Easy endless joining – hot butt welding for cut-to-length belts produces joints with near-original strength.
• Multiple diameters & colour coding – round profiles in standard diameters, colours used for hardness identification.

Common specifications

• Material: 100% cast polyurethane (PU), polyester or polyether based
• Profile: round, solid
• Available diameters: Ø2, Ø3, Ø4, Ø5, Ø6, Ø8, Ø10, Ø12, Ø15 mm; custom diameters on request
• Hardness: 85A / 90A / 92A Shore A (other hardness on request)
• Colours: green, yellow, red, white, transparent, black
• Length: supplied in cut lengths, can be welded endless to required circumference
• Temperature range: -20°C to +80°C continuous; up to +100°C short-term

Application fields
Packaging and bottling lines, food processing equipment, textile and printing machines, postal and parcel sorting systems, electronics assembly, light-industry conveyors, multi-shaft spindle drives and indexing/turning systems.

Custom service
Custom diameters, colours, hardness grades and endless lengths available on request to match specific conveyor or drive requirements.

Technical specifications

• Material: 100% cast PU (polyester or polyether variants)
• Profile: solid round
• Diameters: Ø2–Ø15 mm standard; custom sizes possible
• Hardness options: 85A, 90A, 92A Shore A (others on request)
• Colour options: green, yellow, red, white, transparent, black
• Joining: hot butt welding for endless belts
• Key properties: high elasticity, excellent rebound, oil & abrasion resistance, low noise
