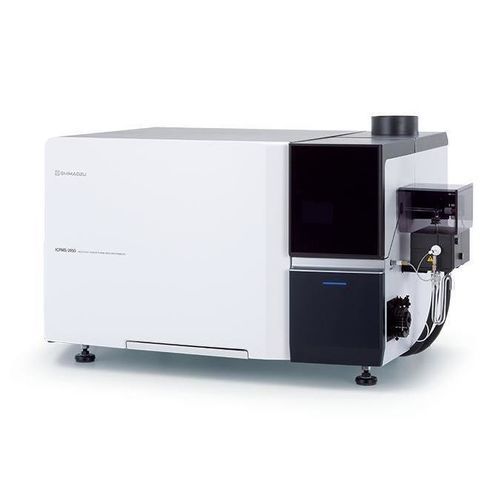

ICP-MS spectrometer ICPMS-2040

for the pharmaceutical industryfor the analysis of trace impuritiesfor food analysis

Overview
The ICPMS-2040/2050 Series inductively coupled plasma mass spectrometers combine reduced resource consumption with streamlined analytical workflows via the proprietary Advanced Mini-Torch System. The instruments are designed to lower Argon usage per sample and shorten measurement cycles without requiring special hardware options. Embedded software features, preset methods and maintenance guidance reduce hands-on time and support routine laboratory throughput.

Key messages

• Advanced Mini-Torch System for lower Argon consumption per sample.
• Shorter measurement cycles and high throughput enabled by High-Speed Cell Gas Purging and ProActive Rinsing.
• Automation and preset methods minimise operator intervention and method development time.

Low gas consumption comparison (table)
Instrument A | Instrument B | Shimadzu ICP-MS
Argon usage per sample (litres) | 56.5 L | 58 L | 36.5 L
Flow rate of Argon (L/min) | 16.95 L/min | 17.40 L/min | 10.95 L/min
Argon consumption (in million litres) | 2.25 | 2.31 | 1.30
Cost of Argon per year | £33,313 | £34,198 | £19,278

Features (high level)

• Advanced Mini-Torch System to reduce Argon consumption and support eco-efficient operation.
• Redesigned collision/reaction cell for improved interference removal.
• High-performance quadrupole mass filter for reliable mass analysis.
• High-Speed Cell Gas Purging to shorten cycle times and increase throughput.
• ProActive Rinsing and Extended Rinsing routines to minimise carryover between samples.
• Preset Methods to reduce or eliminate method development for common applications.
• Embedded software and maintenance information to simplify routine operation and troubleshooting.

Introduction video
Official product introduction video embedded on the product page presenting the ICPMS-2040/2050 Series and its main capabilities.

Downloads
Brochure and related PDF documents available for download (product brochure available).

Applications (examples)
Application notes and example use cases provided, for instance analysis of heavy metals in baby food, heavy metals in soil, multi-element analysis in blood serum, and pharmaceutical raw material analysis compliant with ICH Q3D using collision mode.

Caractéristiques / spécifications techniques

• Model family: ICPMS-2040 / ICPMS-2050 Series.
• Advanced Mini-Torch System: reduces Argon consumption and supports eco-efficient operation.
• Collision/Reaction Cell: redesigned for improved interference removal.
• Mass filter: high-performance quadrupole mass filter.
• High-Speed Cell Gas Purging: reduces measurement times and enables high throughput.
• ProActive Rinsing and Extended Rinsing: minimise carryover and improve sample-to-sample cleanliness.
• Preset Methods: preconfigured methods to reduce or eliminate method development time.
• Typical runtime used for gas-cost calculations: 3.3 minutes per sample (example value; runtime can be optimised by the user).
• Standby mode assumption for gas saving: 2 hours/day at 6.1 L/min (used in comparative calculations).
• Argon usage per sample (Shimadzu example): 36.5 L.
• Argon flow rate (Shimadzu example): 10.95 L/min.
• Estimated annual Argon consumption for Shimadzu device (example): 1.30 million litres (based on 6 hours/day usage over one year).
• Estimated annual Argon cost for Shimadzu device (example): £19,278 (based on the cost assumptions noted on the product page).
