Manual tarpaulin system

skip

Overview

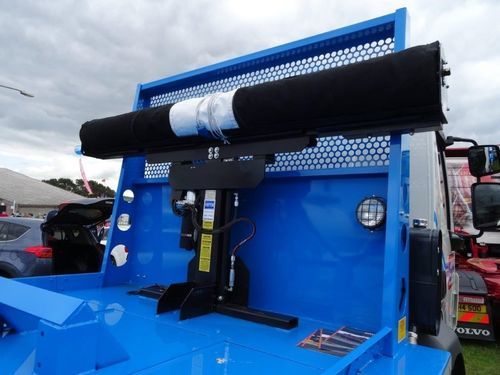

The Skip Manual is a semi-automatic sheeting system designed to cover containers on skiploaders and drawbar trailers. Operation is carried out from ground level: the operator raises the tower, guides the tarp over the bin using a rope and secures it with an extendable hook. The tarp is actuated either by remote control or via a spring-loaded rollerbar.

Construction and finish
Shur-Co® painted steelwork follows a six-point paint process to maximise durability and colour retention. Components are adhesive-stripped, shot-blasted and degreased, then primed with a zinc-rich primer and a barrier protective primer before receiving a final coating that meets GSB standard and Qualicoat Class 1.

Health and Safety / Compliance
Securing devices are engineered for rapid and safe tarpaulin fastening from ground level to support compliance with applicable health and safety regulations and to reduce operator exposure to risk.

Replacement parts
Spare parts for the Skip Manual are held in stock for next-day dispatch to minimise downtime.

Technical specifications

• Product type: Semi-automatic sheeting system
• Application: Covering containers on skiploaders and drawbar trailers
• Operation: Raise tower, guide tarp over bin using rope, secure from ground level with extendable hook
• Tarp actuation: Remote control or spring-loaded rollerbar
• Steelwork finish: Shur-Co® six-point paint process (adhesive strip, shot blast, degrease, zinc-rich primer, barrier protective primer, final coating)
• Coating standards: GSB standard, Qualicoat Class 1
• Design focus: Rapid, safe tarp securing from ground level to meet health & safety requirements
• Parts: Replacement parts stocked and available for next-day dispatch
