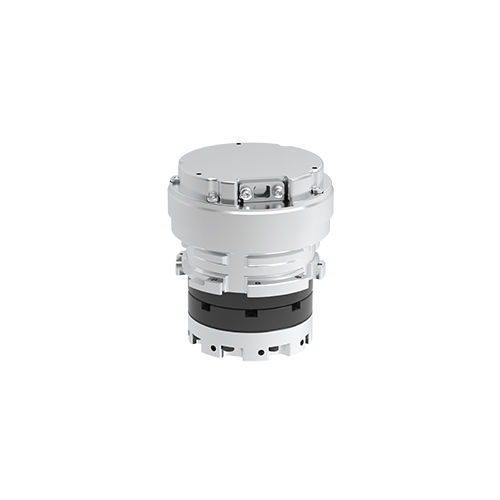

Rotary module for robots BSJ series

Product description
Featuring hollow wiring and a highly integrated drive-control module, this design deeply integrates drive, transmission, and sensing modules. Through built-in torque closed-loop control and full-state feedback within the servo, it achieves a bionic balance of "force control precision + dynamic response" to meet humanoid robots' dual demands for both strength and performance.

Specification — BSJ11
reduction ratio: 100
Start-stop peak torque (N·m): 11
Maximum allowable load torque (N·m): 8.9
Instantaneous allowable maximum torque (N·m): 25
Output peak speed (rpm): 30
Outer diameter * length (mm): 65 * 77
Supply voltage (VDC): 48
Through hole diameter (mm): 7
Weight (kg): 0.45
IP rating: IP54
Communication mode: EtherCAT
Output encoder resolution: 19
Lifespan (h): 30000

Specification — BSJ14
reduction ratio: 100
Start-stop peak torque (N·m): 34
Maximum allowable load torque (N·m): 13.5
Instantaneous allowable maximum torque (N·m): 66
Output peak speed (rpm): 30
Outer diameter * length (mm): 70 * 90
Supply voltage (VDC): 48
Through hole diameter (mm): 7
Weight (kg): 1.05
IP rating: IP54
Communication mode: EtherCAT
Output encoder resolution: 19
Lifespan (h): 30000

Specification — BSJ17
reduction ratio: 100
Start-stop peak torque (N·m): 66
Maximum allowable load torque (N·m): 48.5
Instantaneous allowable maximum torque (N·m): 107
Output peak speed (rpm): 30
Outer diameter * length (mm): 80 * 95
Supply voltage (VDC): 48
Through hole diameter (mm): 9
Weight (kg): 1.35
IP rating: IP54
Communication mode: EtherCAT
Output encoder resolution: 19
Lifespan (h): 30000

Technical features / specifications

• Common: reduction ratio 100; supply voltage 48 VDC; output peak speed 30 rpm; IP rating IP54; communication: EtherCAT; output encoder resolution: 19; lifespan: 30000 h.
• BSJ11 — Start-stop peak torque: 11 N·m; Maximum allowable load torque: 8.9 N·m; Instantaneous allowable maximum torque: 25 N·m; Outer diameter × length: 65 × 77 mm; Through hole diameter: 7 mm; Weight: 0.45 kg.
• BSJ14 — Start-stop peak torque: 34 N·m; Maximum allowable load torque: 13.5 N·m; Instantaneous allowable maximum torque: 66 N·m; Outer diameter × length: 70 × 90 mm; Through hole diameter: 7 mm; Weight: 1.05 kg.
• BSJ17 — Start-stop peak torque: 66 N·m; Maximum allowable load torque: 48.5 N·m; Instantaneous allowable maximum torque: 107 N·m; Outer diameter × length: 80 × 95 mm; Through hole diameter: 9 mm; Weight: 1.35 kg.
