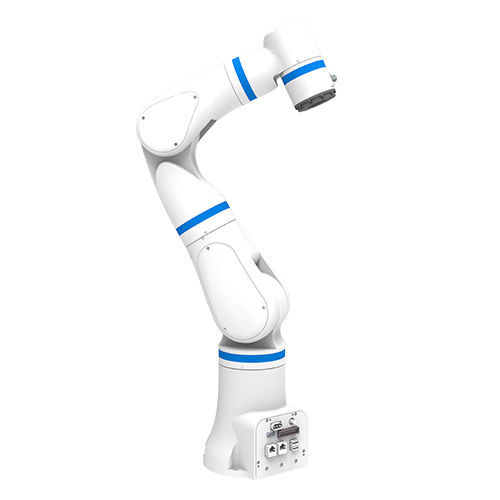

Electric manipulator BR-R63

with gripping tooltoolload

Overview
The BR-R63 Bionic 6-axis robotic arm combines integrated motion control and a lightweight design to support applications in electronics manufacturing, 3C assembly, precision inspection and scientific research. Its multi-degree-of-freedom joints and high-speed responsiveness enable dynamic operations and accurate posture control. Extensive interfaces and multi-platform development support allow rapid integration into production lines and research systems, from solution design to deployment.

Key features

• Working radius: 640 mm
• Weight: 8.5 kg
• Rated payload: 3 kg
• Repeatability: ≤ ±0.05 mm

Technical specifications
Degrees of freedom: 6
Working radius: 640 mm
Weight: 8.5 kg
Rated load capacity: 3 kg
End-of-arm repeatability: ≤ ±0.05 mm
Joint ranges: J1 ±170°; J2 -100°~+100°; J3 -70°~+160°; J4 ±170°; J5 ±90°; J6 ±180°
Max joint speed: J1-J3 180°/s; J4-J6 225°/s
Joint torque sensor: Yes
Brake: J1-J3 with brake
Terminal interfaces: DC24V (1A), RS485, EtherCAT, DI/DO 2 channels
Base interfaces: USB x2, IO x8, network x2, HDMI x1, WiFi, 4G
Power supply: DC48V ±10%; Peak power 400 W; Peak current 8 A; Input 100–240 VAC 47–63 Hz 10 A
IP rating: IP54
Operating environment: 0–45 ℃; humidity ≤85% RH
Storage environment: -30–55 ℃; humidity ≤85% RH
Noise: ≤70 dB
Secondary development support: ROS2, ROS, Python, C++
