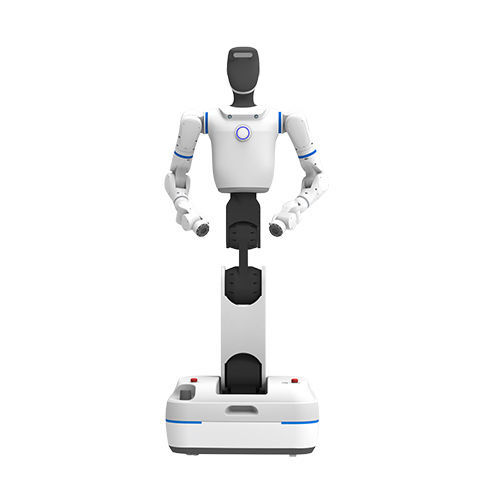

Handling mobile robot platform BR-MR73A

transfertransportfor medium loads

Product Advantages

• Interactive safety features designed for human-robot collaboration
• Smooth coordinated dual-arm control for manipulation tasks
• Intelligent multi-sensor perception including LiDAR and vision
• Extensive development interfaces for integration and customization

Specification
Dimensions (open): 686 × 650 × 335 × 1850 mm; Folded size: 686 × 650 × 335 × 1100 mm
Machine weight: <200 kg
Degrees of freedom: 21 (Head 2, Torso 3, Chassis 3, Arms 14)
Computing power: 275 Tops
Charging power: 500 W
Dual-arm payload: 5–10 kg
Battery life: 8 h under normal working conditions
Perception capability: Multi-sensor fusion (LiDAR, vision camera, speaker, microphone); supports RS485, external EtherCAT/IO expansion; compatible with ROS/ROS2 systems

Interface
Provides SDK and API interfaces for secondary development and customization. Compatible with mainstream dexterous hands and grippers. Supports remote operation, data collection, and standard simulation software.

Application Scenarios

• Industrial: Intelligent inspection, sorting, material handling, and support tasks in manufacturing environments
• Commercial: Customer guidance, reception, consultation, and document delivery in public and commercial spaces

Technical specifications

• Dimensions (open): 686 × 650 × 335 × 1850 mm
• Dimensions (folded): 686 × 650 × 335 × 1100 mm
• Machine weight: <200 kg
• Degrees of freedom: 21 (Head 2, Torso 3, Chassis 3, Arms 14)
• Computing power: 275 Tops
• Charging power: 500 W
• Dual-arm payload: 5–10 kg
• Battery life: 8 hours (normal working conditions)
• Perception: Multi-sensor fusion (LiDAR, vision camera, speaker, microphone); supports RS485, external EtherCAT/IO expansion, ROS/ROS2 compatibility
• Interfaces: SDK and API for secondary development; compatible with mainstream dexterous hands/grippers; supports remote operation, data collection and mainstream simulation software
