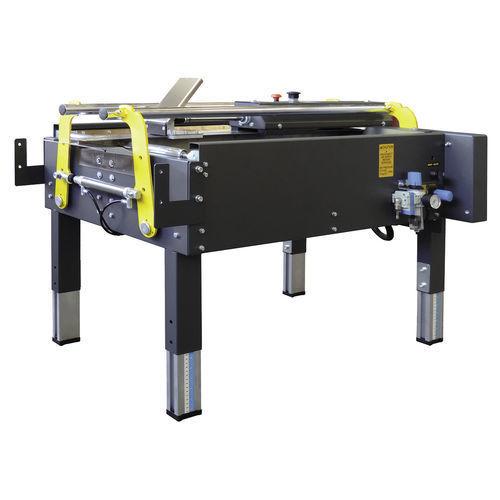

Semi-automatic case erector F105

pneumaticfor the food industryfor the pharmaceutical industry

Product description
The SIAT F105 is a semi-automatic case erector that folds bottom flaps of manually placed boxes and feeds them to a fixed-format case sealer. It supports operator filling while cutting packing time by approximately 50% compared with fully manual handling. Core functions are pneumatic: bottom-flap folding, box holding and a pneumatic pusher to transfer boxes to the sealer.

Advantages

• Ergonomics & productivity: semi-automatic filling station reduces operator handling and speeds packing
• Pneumatic operation: core functions work without electrical power for folding and pushing
• Integrated workflow: connects directly to case sealers for a semi-automatic packing line
• Italian engineering: designed for industrial use and simple maintenance

Key features

• Pneumatic box handling holds boxes vertical for safe filling and sealing
• Manual placement with semi-automatic processing to combine flexibility and throughput
• Designed for direct integration with SIAT case sealers
• Long version available to handle box lengths up to 800 mm
• Pneumatic width guides for secure processing of varied box sizes

Box dimensions
Min. L 200 mm W 150 mm H 90 mm
Max. L 600 mm W 500 mm H 500 mm

Options

• Casters / wheels
• Conveyors: GTL - GTR (extendable conveyors), RG (roller conveyor)
• Elongated / “Long” version for 800 mm box length

Ideal for industries

• Wine & spirits
• Household, consumer & personal care
• Food & dairy
• Pharmaceutical industry
• E‑commerce & distribution

Technical specifications

• Product type: Semi-automatic case erector
• Manufacturer: SIAT (Siat S.p.A)
• Operation: Manual box placement by operator; pneumatic folding of bottom flaps and pneumatic pusher to case sealer
• Power: Pneumatic control — core functions do not require electrical power
• Productivity: Reduces packing time by approx. 50% compared with manual packing
• Integration: Built to connect to SIAT case sealers for a semi-automatic packing line
• Available versions: Standard and Long (handles boxes up to 800 mm length)
• Availability: F105 standard configuration typically in stock; normal shipping within ~3 weeks
• Box handling range: Min L 200 mm / W 150 mm / H 90 mm — Max L 600 mm / W 500 mm / H 500 mm
• Accessories/options: casters/wheels, GTL/GTR extendable conveyors, RG roller conveyor
