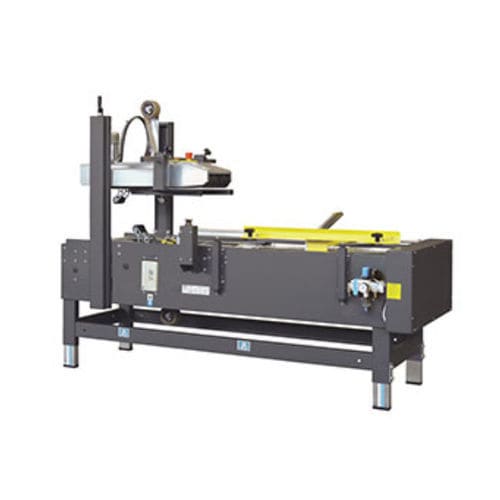

Semi-automatic case former-sealer PS50-TB

adhesive tapemulti-functionfor the food industry

Product description
PS50-TB is a semi-automatic single-block case former & sealer. It integrates a case forming station with a pusher cylinder and a sealing section with top and bottom driven belts, suitable for packaging boxes of various dimensions. The sealing section offers a wide adjustment range for box sliding height. The PS50-TB performs box forming and applies two adhesive tape stripes simultaneously on the upper and lower middle line of the box.

Advantages

• Can be integrated in small lines
• Easy to use

Key features

• Case forming section / case sealing section (top & bottom)
• Adjustable on the box sizes by handles
• Top & bottom drive belts (2 × 50 mm width each)
• 2 motors, 0.13 kW each
• 2 × K11R taping unit – 50 mm width each
• Adjustable working height 585–785 mm

Box dimensions
Min. L 200 mm W 150 mm H 100 mm
Max. L 600 mm W 500 mm H 500 mm

Options

• Higher legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL-GTR)

Ideal for these industries

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical industry
• Logistics industry
• E-commerce

Technical specifications

• Type: Semi-automatic single-block case former & sealer
• Operations: Boxes forming with pusher cylinder; top and bottom sealing with driven belts
• Taping: Simultaneous application of two adhesive tape stripes (upper and lower middle line)
• Taping units: 2 × K11R – 50 mm width each
• Drive belts: Top & bottom drive belts, 2 × 50 mm width each
• Motors: 2 motors, 0.13 kW each
• Adjustable working height: 585 – 785 mm
• Box dimensions (min): L 200 mm × W 150 mm × H 100 mm
• Box dimensions (max): L 600 mm × W 500 mm × H 500 mm
• Adjustments: Box-size adjustable by handles
• Typical configuration: Packing and taping station in single block
