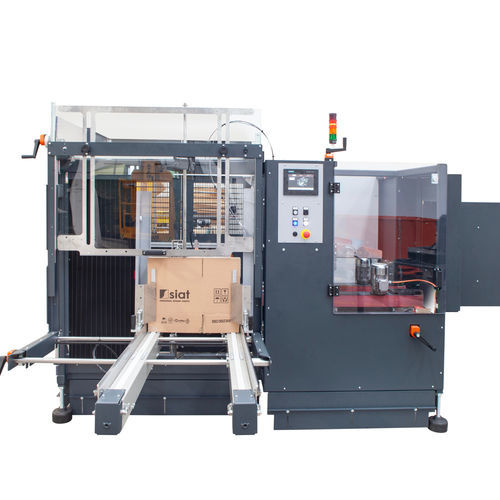

Automatic case erector EZ-BOX 20

adhesive tapehigh-speedfor the food industry

Overview
The EZ-BOX 20 sets a new standard for performance and innovation in SIAT's range of advanced packaging solutions. This automatic case erector, developed in collaboration with Combi and SIAT, is engineered for high efficiency, reliability and seamless integration into packaging lines. EZ-BOX 20 is available in two versions: Standard (Box Max 600 x 400 x 450 mm) and Tall (Box Max 600 x 380 x 600 mm).

Advantages

• High performance up to 20 boxes per minute (bpm)
• Reduced downtime thanks to fast changeover
• Consistently square boxes for improved stacking
• Perfect sealing with SIAT K Series taping units
• Safety-compliant design (CE)
• Simple line integration
• User-friendly 7” HMI
• Full flexibility for left- and right-handed boxes

Key features
Quality boxes

• 120-blank motorized walk-in magazine with end-of-box detection for easy blank loading (option: extended to 220)
• High-quality self-cleaning vacuum cups and positive flap folding to ensure square boxes
• Compatible with premium SIAT K Series taping units

Maximum protection

• Safety shields, interlock switches and photocells to ensure operator protection during operation
• 7” touchscreen display with clear diagnostics and operator-side utilities

Ultimate efficiency

• Kit for processing both right- and left-handed boxes without overturning the box
• Industrial connectivity available for remote assistance and diagnostics

What is an EZ-BOX case erector?
The EZ-BOX line converts flat case blanks into perfectly square, sealed boxes with precision. It addresses manual forming issues (improper sealing, misaligned corners), maximizes throughput, reduces waste and lowers labor costs while delivering consistent case quality.

When to invest
Recommended when manual forming produces more than 100 cases/hour or when scaling operations requires consistent case quality, reduced transport damage and improved stacking efficiency. The EZ-BOX line provides rapid ROI by ensuring stable, square cases.

Box dimensions (mm)
L 200 – 600
W 150 – 400
H 100 – 450

Options

• Siat Connect for remote connection and assistance
• K12 SIAT Taping Unit (3”)
• Outfeed safety tunnel
• Opposite hand boxes kit
• Extended magazine up to 220 blanks
• Higher work bench 700–800 mm
• Casters

Ideal industries

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical
• Logistics

Technical specifications

• Model: EZ-BOX 20 (Standard and Tall versions)
• Box Max Standard: 600 x 400 x 450 mm (L x W x H)
• Box Max Tall Version: 600 x 380 x 600 mm (L x W x H)
• Processing box range: L 200–600 mm; W 150–400 mm; H 100–450 mm
• Performance: up to 20 boxes per minute (bpm)
• Magazine: 120-blank motorized walk-in magazine (option: extended to 220)
• Vacuum system: high-quality self-cleaning vacuum cups
• Flap folding: positive flap folding for square boxes
• Taping: compatible with SIAT K Series taping units; option K12 (3”)
• HMI: 7” touchscreen with diagnostics and utilities
• Safety: safety shields, interlock switches, photocells, CE compliant
• Flexibility: kit for processing both left- and right-handed boxes without overturning
• Connectivity: industrial connectivity for remote assistance
• Integration: designed for easy line integration and fast changeovers
