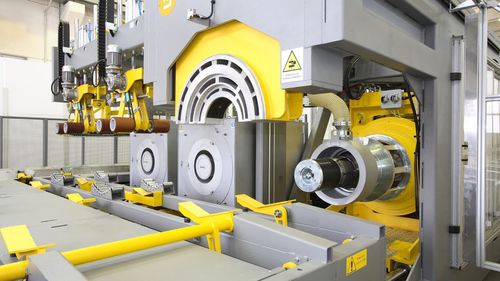

Automatic belling machine CPE

for PE pipesfor PP pipesfor corrugated pipe

Belling machines for CPE structured pipes. Belling machines for PE and PP pipes with structured walls (corrugated-ultrarib) and CPE system (Sica patent). Socket produced by hot forming the ends on the pipe. • Socket as rigid as the pipe because it is formed with the structured wall of the pipe. • Elimination of double sockets and injection-molded sockets produced using expensive injection machinery and large warehouse for storing them. This also means eliminating warehouse logistics and transport of the pieces. • Three-stage forming system with mechanical mandrel with 12 expandable inserts. The socket can be formed and calipered to stabilise its dimensions. The CPE cycle avoids spontaneous shrinkage of sockets, even after lengthy exposure to atmospheric agents. • Two forced-air ovens. Enable uniform heating of the inside and outside of the corrugated profile, even the pipe-walls inside the groove. • Can socket any length of pipe from 1 (3’) to 6 m (20’) (versions for pipes of up to 12 m (40’) available). • Productivity compatible with the corrugating units’ production rates.
