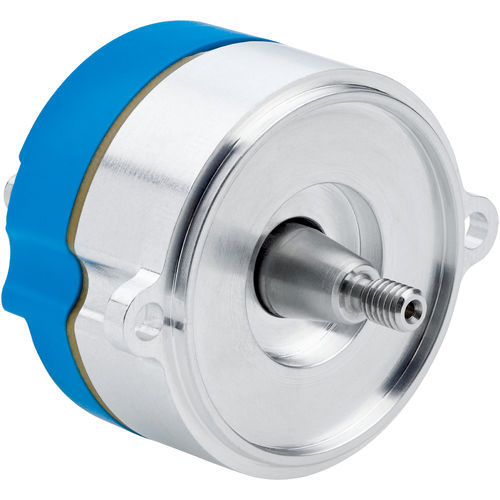

Position measuring system EN series

speedopticalautomatic

Motor feedback system with HIPERFACE DSL® for compact servo drives The ENS/ENM35 is a compact motor feedback system for precise position and speed measurement in servo motors and is suitable for dynamic automation applications and drive technology. The digital HIPERFACE DSL® interface enables a single-cable connection between motor and drive, reduces installation effort, and saves space. ENS/ENM35 combines optical scanning technology with a mechatronic, battery-free multiturn drive – for maintenance-free and reliable operation. The integrated calibration function reduces position errors caused by installation tolerances almost entirely and ensures high accuracy in dynamic applications. Maintenance-free and long-term availability Mechatronic, battery-free multiturn system: maintenance-free, battery does not need to be replaced and automatically meets IATA requirements for air freight shipments. Quick integration into existing HIPERFACE-DSL® systems Backwards compatible thanks to standardized mechanical and electrical interface – easy integration into existing HIPERFACE-DSL® systems. Space-saving design Flat housing design – suitable for compact motors and limited installation space. High productivity Low self-heating and a wide temperature range help the motor to exploit its full performance potential.
