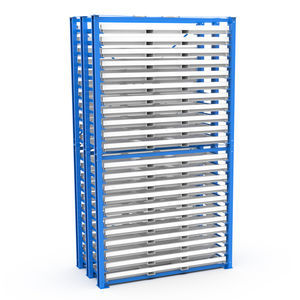

Metal sheet storage rack

steel

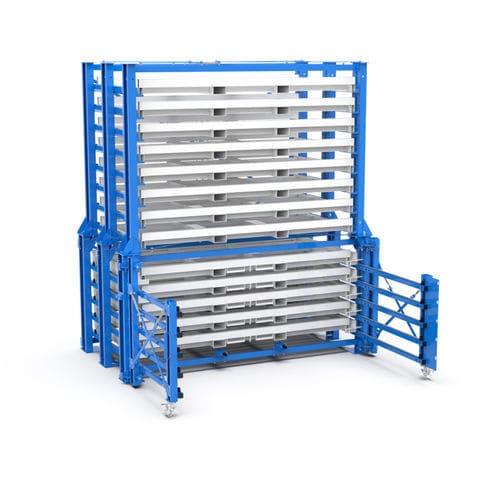

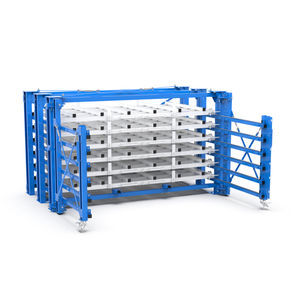

Rack with roll-out shelves for cassettes Double module structure to maximize rack height, combining ergonomic pull-out drawers and high-capacity upper levels. Load capacity Maximum load capacity per drawer: 3,000 kg. Total load capacity of the rack: 60,000 kg Lower module with pull-out drawers Up to 8 levels for maximum ergonomics during loading and unloading. Most common configuration: 6 levels, ideal for everyday use in warehouses. Upper module Upper structure designed to take advantage of available height up to 6 m. Number of levels defined based on required load capacity and type of material stored. Sliding system Shelves on high-strength steel wheels. Closed profile guides for stability and precision. Right guide equipped with a dedicated rail to ensure perfect alignment of movement. Safety systems Doors with integrated floor locks, lockable in open and closed positions. Each level equipped with a mechanical lock for the extended and retracted positions. Cushioned end stops on the guides to limit the drawer's travel. Load limiters/indicators that signal the maximum height of material and prevent it from moving.
