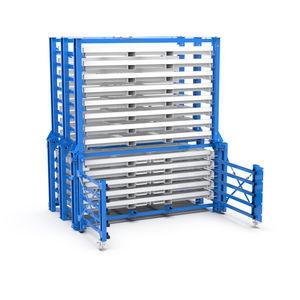

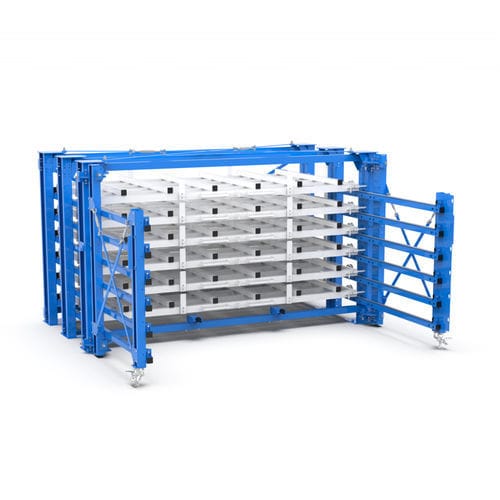

Metal sheet storage rack SmartRack

steel

Ideal solution for ergonomic storage of sheet metal and heavy materials, with front-opening drawers for easy loading and unloading. Load capacity Maximum load capacity per drawer: 3,000 kg (6614 lbs) Total load capacity: not defined — limited by ergonomic height, not by frame structure Available levels Recommended maximum number: 8 levels Most common configuration: 6 levels (best balance between ergonomics and capacity) Sliding system Drawers mounted on steel wheels Guides made with closed profiles for maximum stability Right guide with precision rail to ensure smooth, straight movement Integrated safety systems Doors equipped with floor locks, lockable in both open and closed positions Limit switches with shock absorbers at the ends of the guides to limit travel Each level has a mechanical lock in the extended and retracted positions Visual load limiters to indicate maximum height and prevent unwanted movement of the material
