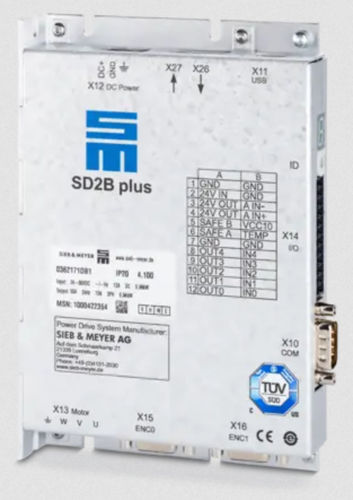

Synchronous frequency converter SD2B plus

asynchronousintegratedstandard

The frequency converter SD2B plus allows sensorless operation of low-voltage asynchronous and synchronous motors with speeds up to 120,000 rpm, as well as control with TTL encoders. Due to this motors can be operated speed-controlled and torque-controlled even from speed zero. The safety function Safe Torque Off (STO) is integrated as standard in the device to allow low-cost realization of the steadily increasing demands towards machine safety. The NRTL/CSA certified devices are easily integrated into systems for the US market with no additional approvals needed. Highlights Master-Slave-Operation Function: Synchronization of several SD2B plus via TTL encoder inputs and outputs. Advantage: Autarkic high-precision synchronization of several SD2B plus frequency converters without external control components. Benefit: Lower system costs. Integrated Logic Voltage Supply Function: NRTL/CSA certified. Advantage: Easier integration into machines for the North American market. Benefit: Lower costs, as no additional approvals are necessary Parameterization via USB Function: Logic voltage supply via USB interface. Advantage: Parameterization of SD2B plus without connected voltage supply is possible via the USB interface, which allows pre-configuration of devices outside the machine. Benefit: Lower system costs. The IP20 housing of the SD2B plus impresses with a reduced overall height of only 25 mm. The particularly compact design enables simple and flexible integration of the device.
