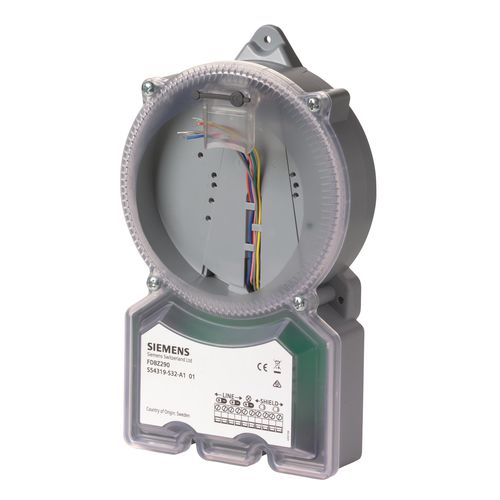

Air duct smoke detector FDBZ290

ductair ductfor fire safety applications

Product description
The air sampling smoke detection kit is a passive monitoring system without its own fan. It uses pressure differences in the ventilation system to continuously extract air samples from the duct via the airflow tube and deliver them to the detection kit.
The kit operates only when the ventilation system is running and air is circulating.
The air to be monitored should normally be clean, i.e. free from dust and aerosol particles.
If the smoke detector registers a defined smoke concentration, the corresponding danger level is reported to the fire control panel which then triggers an alarm.
The specialized Sinteso and Cerberus PRO smoke detectors and bases must be ordered separately.

Identifiers

• Product No.: FDBZ290
• Stock No.: S54319-S32-A1
• GTIN Number: 4047625015688

Characteristics / Technical specifications

• Protection category: IP54
• Relative humidity: ≤95 % rel.
• Operating temperature: -20…50 °C
• System compatibility: Sinteso: FDnet, collective; Cerberus PRO: C-NET, collective
• Permissible air speed: 1…20 m/s
• Airflow indicator: ≥1 m/s
• Color: Silver grey, ~RAL 7001
• Maximum duct size: 2800 mm
• Compatible detectors (examples): Sinteso FDOOT241-A9, Cerberus Pro OOH740
• Connectivity: Directly connectable to the detection loop
• Parameters: Selectable ASA parameter set
