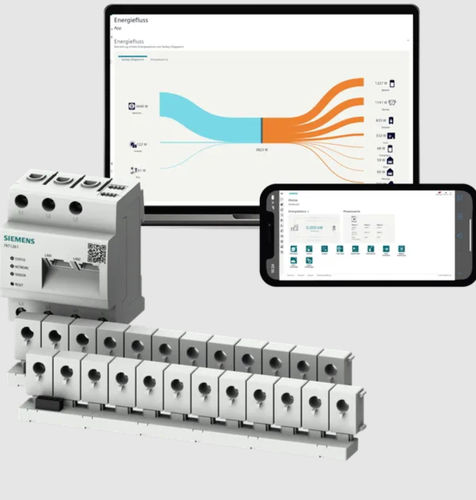

Current measuring device 7KT PAC1200

powervoltagefor low-voltage power distribution

The 7KT PAC1200 multichannel current measuring system is a low-cost solution for the transparent representation of energy consumption. The current values themselves are measured by means of sensors that are fitted above the miniature circuit breakers. The simple cost center allocation enables maximum transparency over the entire application. Scalability The 7KT PAC1200 multichannel current measuring system monitors and displays the energy consumption of up to 96 outgoing feeders. A maximum of eight times twelve sensor bars can be configured, always eight bars with the respective combination. The system can be scaled to individual needs and application scenarios. The individual sensors can be named individually and compared with each other. The system can be flexibly configured and combined with up to 8 sensor bars in the different versions available. Furthermore, up to 4x Powercenter 1000 with up to 24x communicative circuit protection devices of the SENTRON CP COM series each can be connected and displayed in the web server of the 7KT1261. In addition, the VersiCharge wallbox can be integrated and the charging behavior controlled.
