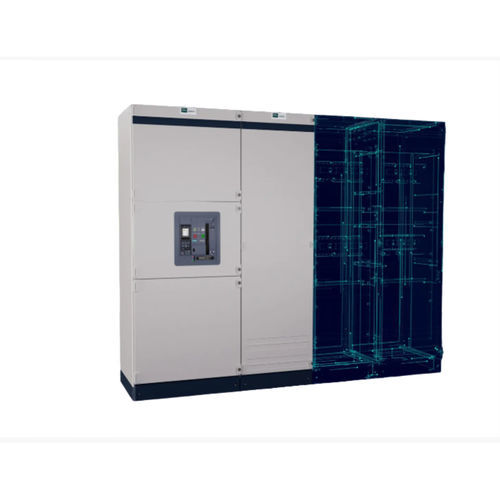

Power distribution SIVACON S4

Today’s electrical infrastructure faces unprecedented demands: an ever-growing number of consumers, increasingly dynamic load patterns, and advancing automation requirements. The SIVACON S4 switchboard is equipped with everything needed to meet these demands today while being ready to master future challenges with equal confidence. The SIVACON S4 power distribution board (NF technology) delivers reliable performance with standard current ratings up to 4,000 A, while offering enhanced capabilities of up to 6,300 A with an extended license option. Built to meet all industry standards, the system ensures maximum reliability through design verification in accordance with IEC 61439, providing operators with certified safety and performance assurance. Its advanced design concept enables the integration of up to two circuit breakers within a single section, while the centrally positioned main busbar system achieves remarkable efficiency with 30% copper savings. Engineering precision is ensured through comprehensive 3D data provision, allowing for efficient planning and configuration. With detailed STEP data, an accurate digital twin can be created for advanced system modeling and maintenance. Until now, generating a digital twin from STEP data was a tedious and complex process. Now we’re making the switch to 3D engineering extremely simple. Thanks to the new 3D processor, you can export the digital twin of your SIVACON S4 power distribution boards from SIMARIS configuration with one click and then export it as a STEP file via SIMARIS xchange. With its detailed visualization, the digital twin offers added value in many areas, from planning to maintenance and expansion.
