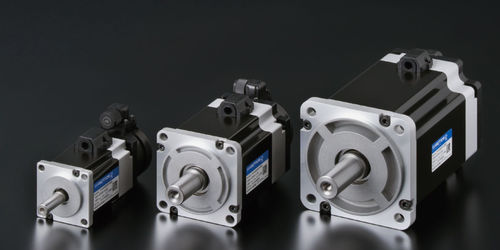

Brushless motor P 50DC24 Vsmall
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- small
- Protection class
- IP55, IP40
- Power
Max.: 1,000 W
(1.36 hp)Min.: 30 W
(0.04 hp)- Torque
Max.: 3.185 Nm
(2.349135 ft.lb)Min.: 0.098 Nm
(0.072281 ft.lb)- Rotational speed
4,500 rpm
(28,274.3339 rad.min-1)
Description
The P50B series motors are available with nominal torques ranging from 30W to 1kW. Small size and high rigidity. Their rotation is smoothl even at low speed. Thanks to a rotation speed of 4500 rpm, the positioning time is very short. The mounting flange is compatible with many existing motors. All models can be equipped with a 24 VDC power-down brake. Protection IP55 from model 50 W. Operating temperature: 0 ~ 40 ° C We present here only an extract of the range, do not hesitate to consult us for other powers.
